The project is urgent! Gujing magnetic ring inductor breaks the deadlock in 24 hours, deciphering the filtering problem of intelligent home appliance controllers

At the critical stage of the upcoming mass production of the smart home appliance controller project, a customer's power filter circuit suddenly malfunctioned: the load could not move, and the filtering effect sharply decreased. The iron silicon aluminum magnetic ring inductor (33 μ H) recommended by the original manufacturer failed the board test, and even after adjusting the wire diameter, there was no improvement. The project schedule is stuck in the backend testing phase, and the client team is facing delivery pressure and urgently needs a reliable solution.

1、 Pain Point Focus: Dual Challenges of Time Urgency and Technological Blind Spots

For business decision-makers, such technological risks often mean:

Project cycle delay may lead to the loss of market opportunities;

Repeated trial and error leads to an increase in research and development costs;

The unstable supply chain solution affects product reliability and brand reputation. ·

On the surface, this issue appears to be a problem with wire diameter, but in reality, it hides deeper challenges in selecting magnetic cores and matching materials. If only patching on peripheral parameters, not only can it not be cured, but it may also fall into a cycle of "test fail re debug".

2、 Gu Jing's Intervention: From Phenomenon Tracing to Essence Deconstruction

After receiving the request, the sales engineer of Gujing quickly collaborated with the technical team to conduct a panoramic analysis of the circuit parameters. Based on 23 years of experience in inductor manufacturing and a database of over 20000 magnetic material formulas, the team quickly determined:

The core bottleneck lies in the mismatch between the magnetic core material and the circuit operating conditions (12V-27V wide voltage input);

The original inductor saturates prematurely under load current, resulting in a sudden drop in inductance and filtering failure;

A trinity reconstruction must be carried out from the magnetic core material, winding structure, and loss characteristics.

3、 24-hour rapid response: precise solution implementation

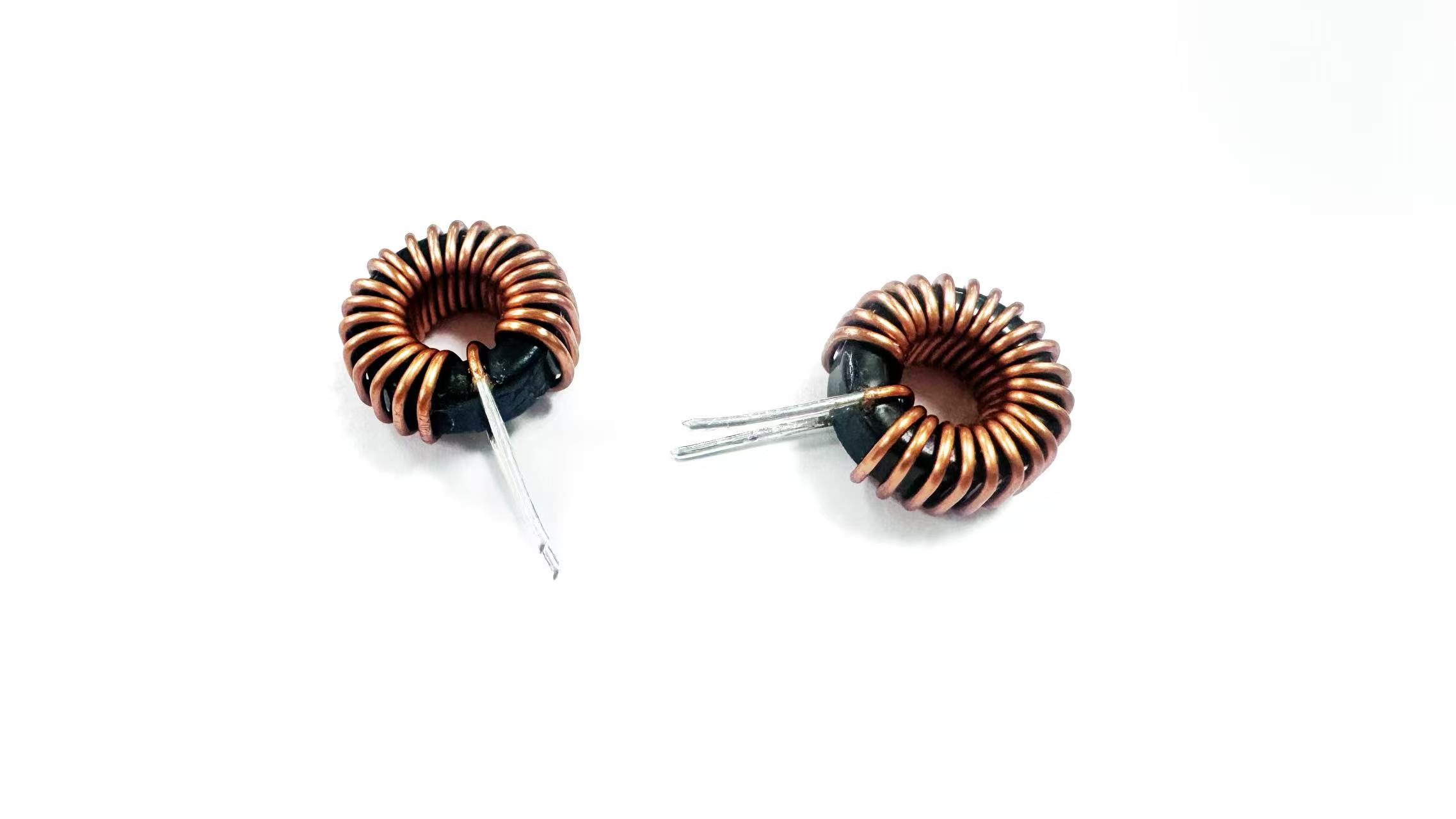

The technical team completed the optimization and design verification of the magnetic core formula overnight, and delivered the customized magnetic core induction GTC1709-330MB the next day. This plan focuses on:·

Sensitivity of 33 μ H ± 20%, accurately matching the requirements of H4039 chip;

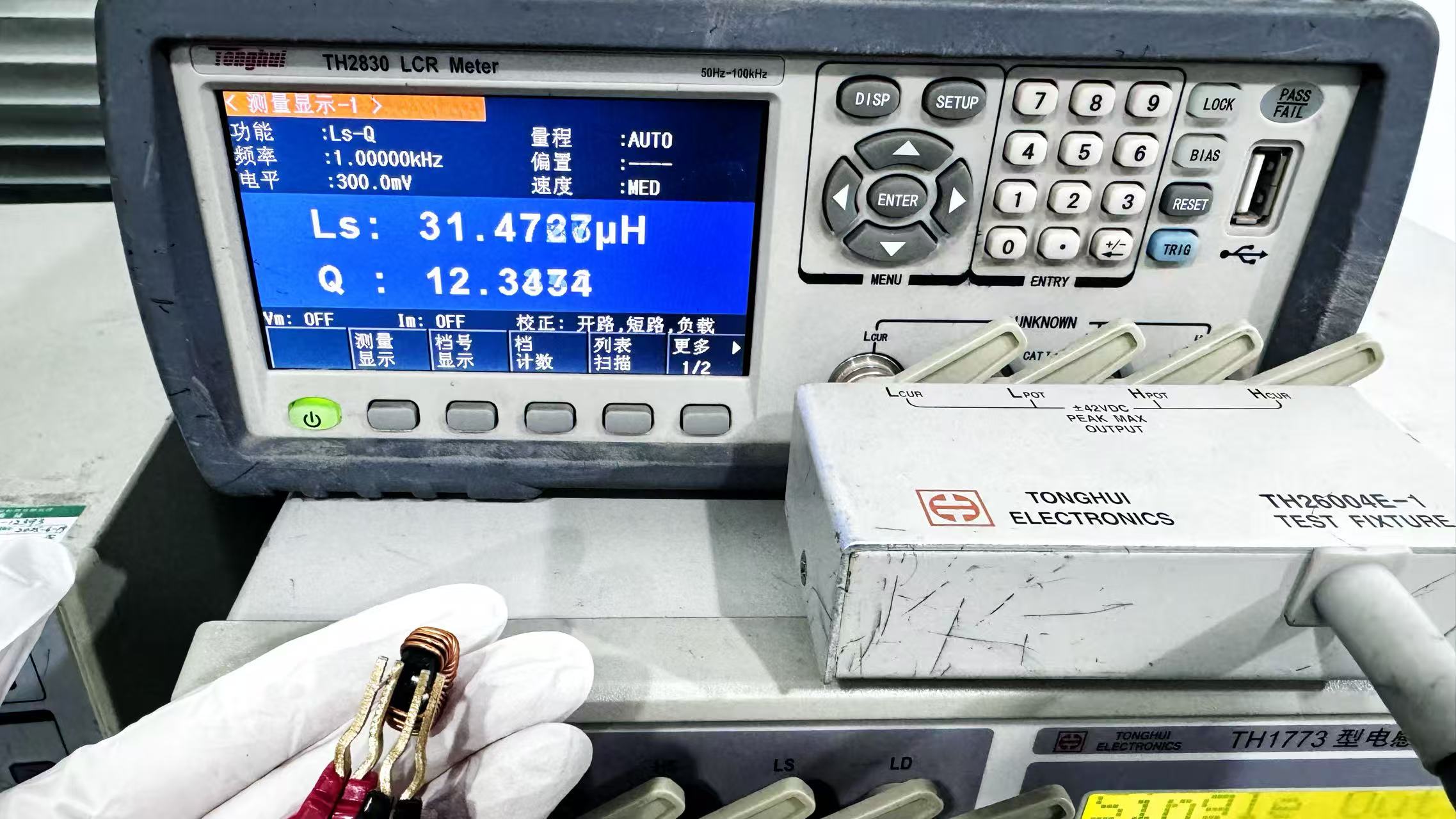

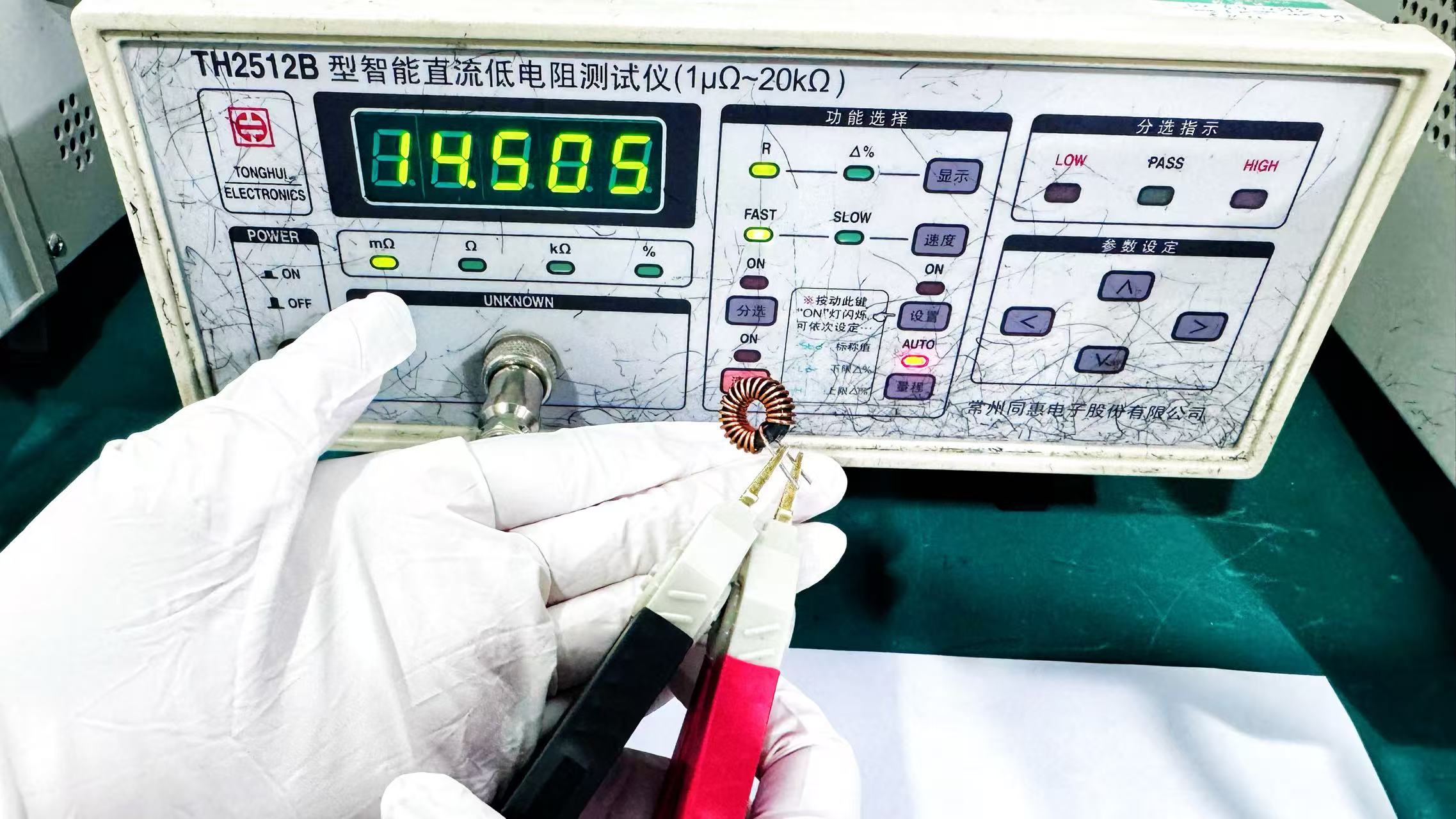

Under the testing conditions of 1kHz/0.3V, the DC resistance is only 14.27-14.7m Ω, significantly reducing conduction loss;

Load 1.7A current with a sensitivity change rate of ≤ 20% to ensure stable operation across the entire voltage range. ·

Customer test data shows that after optimization, the inductance value remains stable at 30-31.39 μ H, the load capacity is significantly improved, the filtering waveform is smooth and meets the standard, and it passes all load tests at once

4、 Empowering closed-loop services: the underlying logic from crisis to turnaround

This efficient breakthrough is thanks to Gu Jing's full chain closed-loop service capability:

1. Independent research and development of magnetic cores: relying on a magnetic material formula library to quickly match materials with low temperature rise and anti saturation properties;

2. Design collaborative optimization: Simulate inductance parameters by combining circuit topology and chip characteristics;

3. Quick sampling system: Complete sample production and basic testing within 24 hours;

4. Batch delivery guarantee: Fully automated production lines ensure consistent performance.

5、 Decision maker insights: Supply chain collaboration creates implicit value

In the selection of electronic components, inductance serves as the "invisible heart", and its performance directly affects the stability of the entire machine. The Gu Jing case demonstrates that:

High quality suppliers need to have a penetrating solution capability from material science to application technology;

In an emergency crisis, technological reserves and response speed will become the key to project redemption;
