Gujing's high current and high inductance I-shaped inductor helps Shanghai customer signal collector new project

In the selection of electronic components, accurately matching project requirements, balancing cost and performance, is the key to measuring a supplier's technical strength and service depth. Recently, with its profound technical accumulation and rich product library, Gujing Electronics successfully provided an optimized inductance solution for a new project of a long-term cooperative old customer in Shanghai - cable signal collector. It replaced the customer's initial plug-in inductance with a high-performance 1415 packaged I-shaped inductor, ensuring the best balance between performance, cost, and space for the project.

1、 Customer demand: Clear indicators for high sensitivity and high current

The customer's new project cable signal collector has set clear and strict requirements for one of the core components, the inductor: the inductance must reach 10mH, and the current must meet 260mA. This not only requires the inductor to have good energy storage and filtering capabilities, but also to ensure stable magnetic saturation characteristics when large currents pass through, avoiding performance degradation. Therefore, the customer immediately contacted the Gujing technical team with 23 years of professional experience.

2、 Valley View Plan: Deep Balancing, Accurate Recommendation

After receiving the customer's request, the Gujing technical team responded quickly and did not simply match according to the customer's initial model selection. The team conducted a thorough analysis of the customer's application scenarios, performance requirements, cost budget, and reserved space on the PCB board. After comprehensive evaluation, the technical team has made a key decision: it is not recommended to use magnetic ring inductors, but to choose the I-shaped inductor packaged in Gujing 1415.

The specific product parameters provided by Gujing for this plan are:

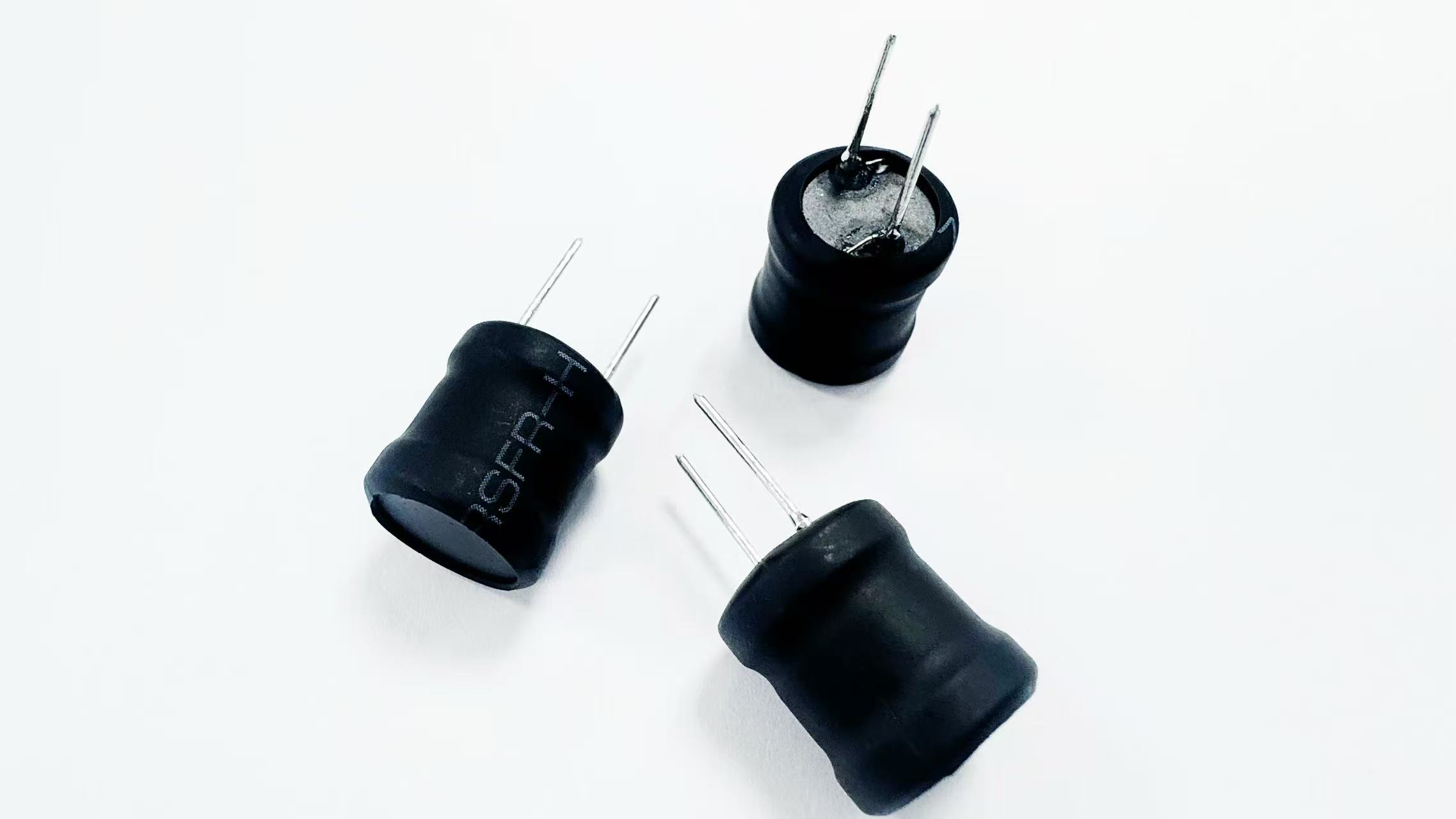

Model: 1415 packaged I-shaped inductor

Nominal inductance value: 10mH ± 10%

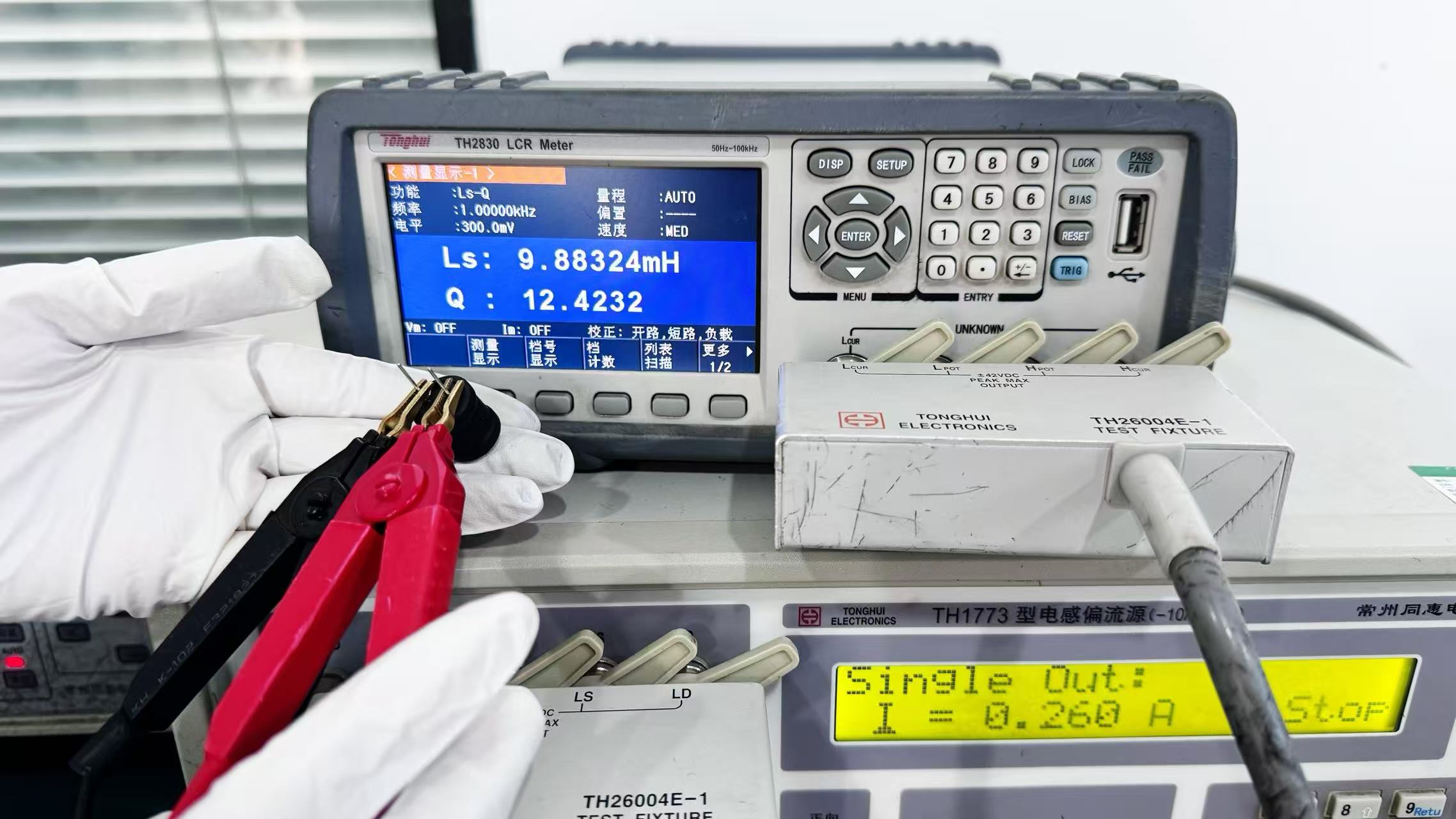

Test conditions: 1KHz/0.3V

Actual sensitivity range: 9.60-9.91mH (fully compliant with specifications)

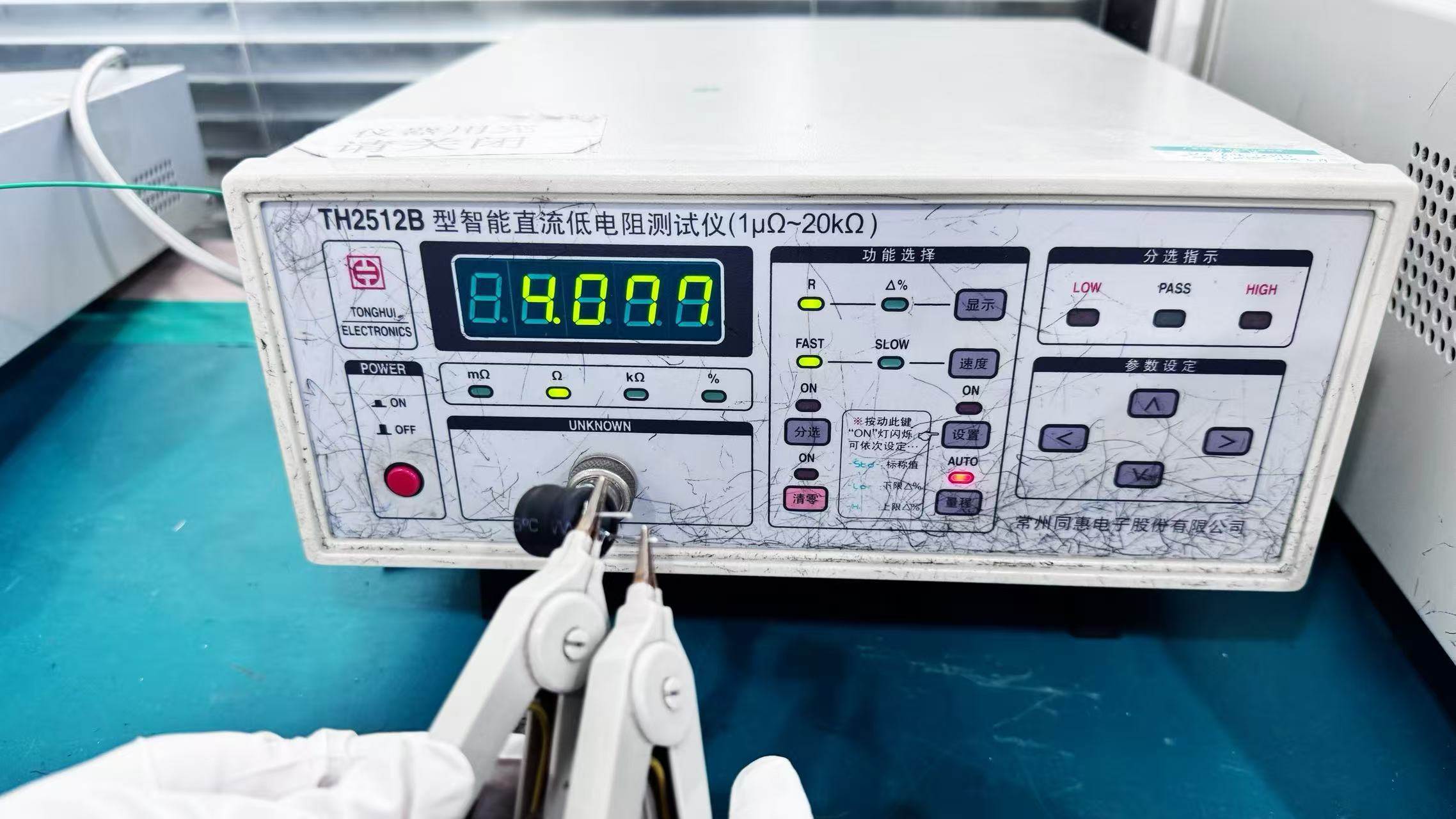

DC resistance: 4.07-4.33 Ω

Rated current: 260mA (fully meets requirements)

The test data shows that the I-shaped inductor perfectly meets customer requirements in all electrical parameters.

3、 Technical analysis: Why abandon magnetic rings and choose I-beams?

Faced with the customer's question "Why not choose magnetic ring inductors under such high current and inductance requirements?", the Gujing technical team provided a professional and detailed answer. The decision-making logic behind this precisely reflects the significant advantages of I-shaped inductors over magnetic ring inductors in specific application scenarios:

1. More cost-effective: Under the premise of meeting the same electrical performance (10mH, 260mA), the manufacturing cost of I-shaped inductors is usually lower than that of magnetic ring inductors.

2. Strong anti saturation ability and high stability: For customers with a working current requirement of 260mA, the specific material of the I-shaped inductor selected by Gujing can ensure that the inductance value will not sharply decrease (magnetic saturation) when the current reaches or even slightly exceeds it. Some types of magnetic ring inductors may experience more severe performance degradation when approaching saturation current.

3. Easy installation process: simplifies the welding process, reduces assembly difficulty, and helps customers improve production efficiency.

4、 Strength endorsement: 23 years of accumulation, 1+1 one-stop service

The success of this case is by no means accidental. Gujing Electronics has been dedicated to the research and manufacturing of inductor products for 23 years, accumulating a vast and comprehensive database of magnetic core materials and application cases. It is based on a deep understanding of the characteristics of various magnetic materials that the technical team can quickly select the most suitable material and structure (I-shaped inductor 1415 package) from numerous solutions, achieving precise matching.

Gujing Electronics is not only an inductor manufacturer, but also an enterprise that provides "1+1 one-stop technical services". We not only provide high-quality products, but also offer a full process service from technical consultation, solution selection, sample testing to mass production support and after-sales support. We firmly believe that only by deeply participating in customer needs analysis can we provide solutions that exceed expectations.

Conclusion

This collaboration with our old customers in Shanghai is another perfect proof of Gujing Electronics' technological strength and service philosophy. By successfully replacing the I-shaped inductor with better performance, higher cost, and higher reliability, we not only help customers solve their current technical needs, but also add strong weight to the long-term market competitiveness of their products. Gujing Electronics is willing to become your trusted electronic component partner with 23 years of professional accumulation, to jointly meet every technological challenge and create brilliance.
