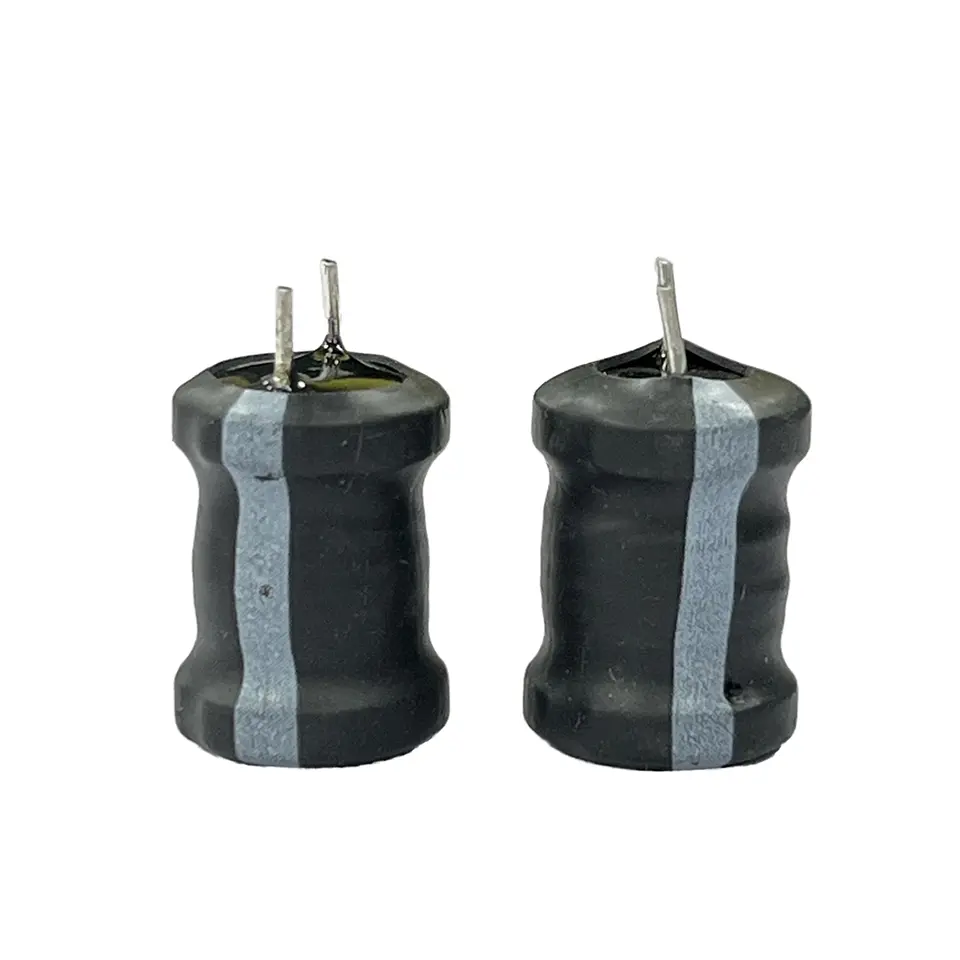

Characteristics of I-shaped inductor DLGBX1016
1. Excellent frequency adaptability
Fine-tuned magnetic core and winding structure ensures reliable performance in medium and high frequency switching circuits, effectively suppressing high-frequency noise and signal interference.
2. Ultra-low temperature drift performance
Adopts high-quality magnetic materials with stable magnetic properties, which minimizes inductance variation under continuous temperature changes and guarantees consistent circuit operation.
3. Compact and practical structural design
Standard 1016 miniature size balances electrical performance and space utilization, perfectly fitting compact PCB layouts for miniaturized electronic devices.
4. Superior welding and structural stability
Precision pin forming and dense winding process enhance structural firmness, resisting deformation and failure during soldering and long-term device operation.
I-shaped inductor DLGBX1016 application areas
1. Portable consumer electronics
Ideal for compact power circuits of Bluetooth devices, portable chargers and wearable electronic products.
2. Intelligent control systems
Suitable for mini intelligent controllers, sensor modules and low-voltage control circuit units.
3. Commercial lighting equipment
Widely used in low-power commercial LED lights, strip light drivers and intelligent lighting control modules.
4. Communication peripheral devices
Applicable to signal filtering and voltage stabilization of small communication terminals and network auxiliary equipment.
Concise Single-line Version
Mainly applicable to portable consumer electronics, intelligent control modules, commercial lighting systems and communication peripheral equipment.
DLGBX Series
List of package dimensions for I-type inductor DLGBX
| Type | ΦA | B(max) | C(min) | E | F |
|---|---|---|---|---|---|
| DLGBX0406 | 4.5±0.5 | 7.0 | 10 | 0.6 | 2.0 |
| DLGBX0608 | 6.5±1.0 | 10.0 | 10 | 0.6 | 3.0 |
| DLGBX0810 | 8.5±1.0 | 12.0 | 10 | 0.6 | 5.0 |
| DLGBX0912 | 9.5±1.0 | 14.0 | 10 | 0.6 | 5.0 |
| DLGBX1010 | 12.0(max) | 12.0 | 15 | 0.8 | 6.0 |
| DLGBX1012 | 12.0(max) | 16.5 | 15 | 0.8 | 6.0 |
| DLGBX1016 | 12.0(max) | 21.0 | 15 | 0.8 | 6.0 |
| DLGBX1212 | 14.0(max) | 16.5 | 15 | 0.8 | 7.5 |
| DLGBX1820 | 18.0(max) | 20.0 | 28 | 1.0 | 10.0 |
*Note: Dimensions can be customized according to customer requirements
I-shaped inductor DLGBX package size diagram
