TDS DownloadProduct Introduction

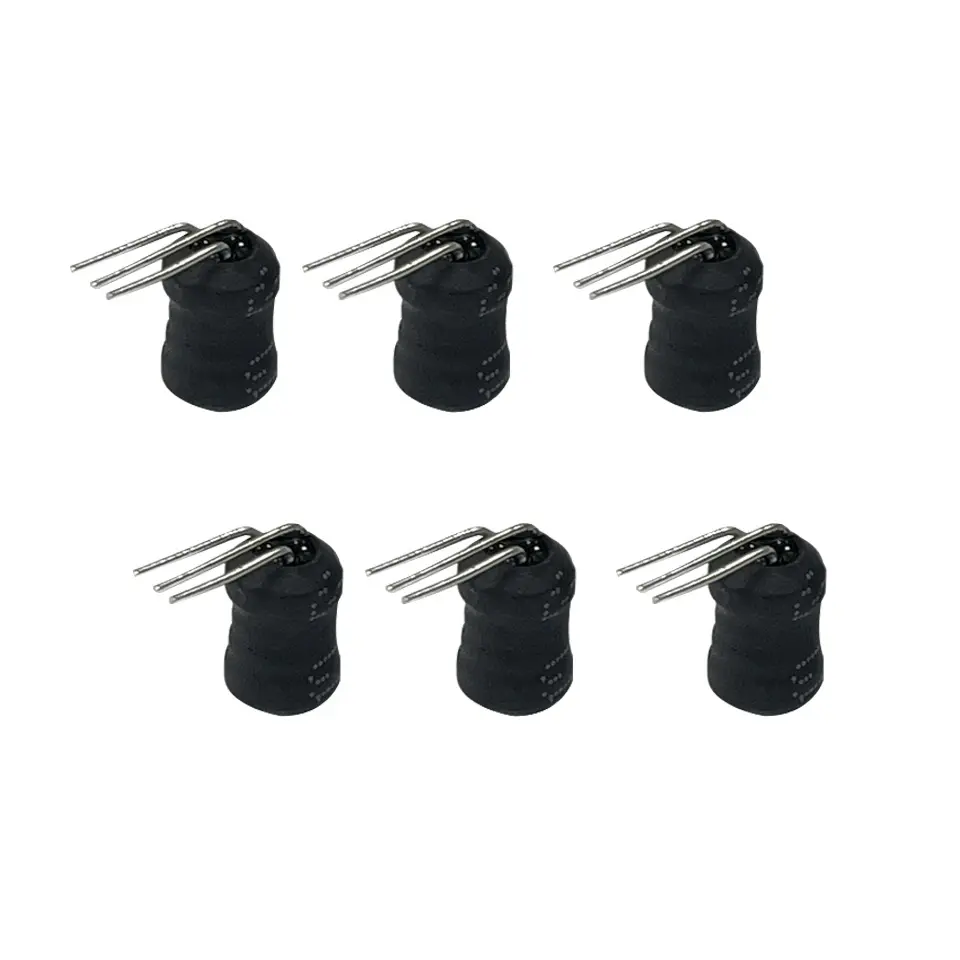

Characteristics of I-shaped inductor DLGB3X0608
1.Low DC resistance, lower power consumption
2.High saturation current, great anti-saturation performance
3.Stable electrical parameters under continuous load
4.Compact 0608 size, vertical through-hole mounting
5.Low operating temperature, reliable long-term work
6.RoHS & REACH compliant
7.Custom inductance, wire gauge available
Application areas of three-legged I-shaped inductor DLGB3X
DC/DC conversion, etc.; audio signal products; personal computers, etc.;electrical equipment
DGB3X Series
List of package dimensions for the three-pin inductor DLGB3X
| TYPE | A max | B max | C | D Ref. |
|---|---|---|---|---|
| DLGB3X0608 | 11.0 | 7.5 | 3.0±1.0 | 0.65 |
| DLGB3X0810 | 13.0 | 9.5 | 4.0±1.0 | 0.65 |
| DLGB3X0912 | 15.0 | 10.5 | 5.0±1.0 | 0.65 |
| DLGB3X1012 | 16.0 | 11.5 | 6.0±1.0 | 0.80 |
| DLGB3X1016 | 20.0 | 12.0 | 6.0±1.0 | 0.80 |
Three-legged I-shaped inductor DLGB3X package size
