Characteristics of I-shaped inductor DLGBX
1. Small-sized vertical inductors occupy little installation space; inductance range: between 1.0uH and 100000uH.
2. Small distributed capacitance and high self-resonant frequency; rated current: based on temperature rise not exceeding 20°C.
3. Special lead structure, less prone to open circuit phenomenon. Operating temperature range: between -20oC and 80oC.
4. Protect with PVC or UL heat-shrink tubing. Terminal strength: greater than 2.5 kilograms.
5. Lead-free and environmentally friendly.
Application areas of I-shaped inductor DLCP
DC/DC conversion, etc.; audio signal products; personal computers, etc.;electrical equipment

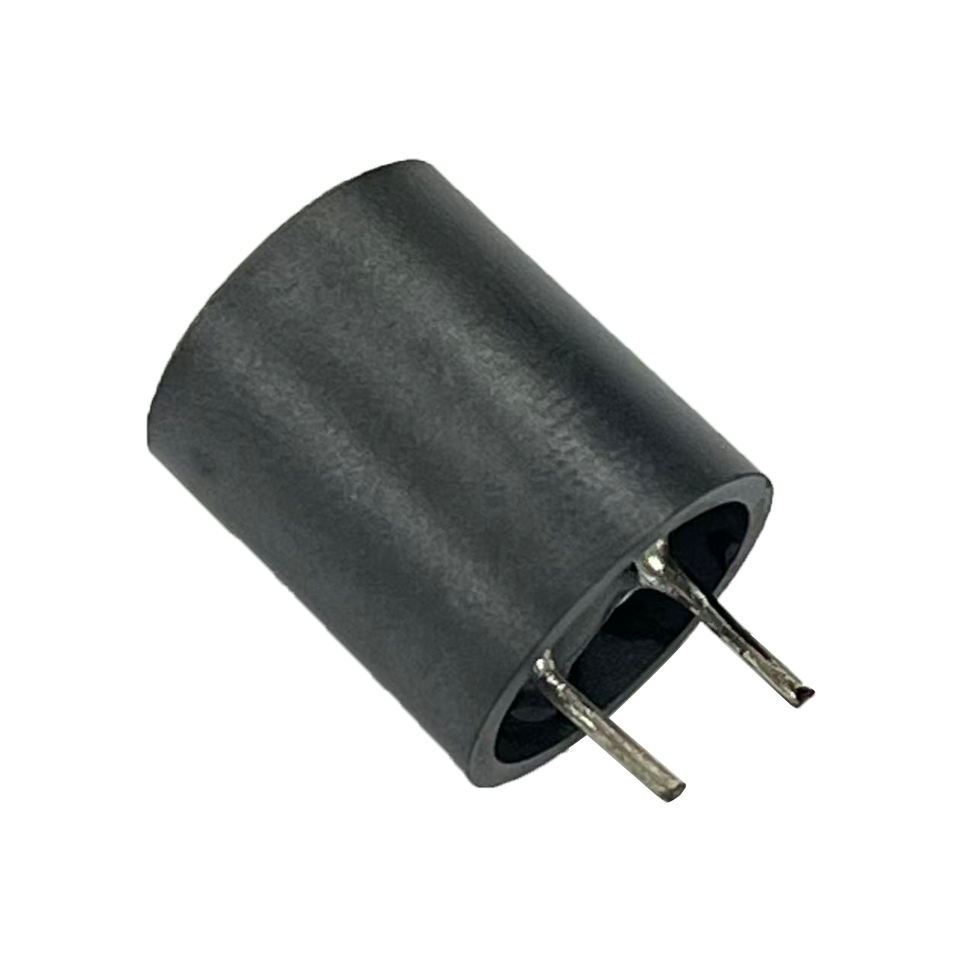

DLCP Series

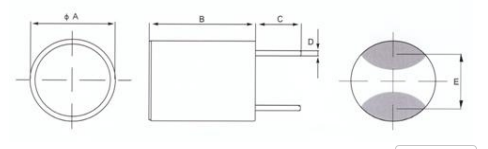

List of package dimensions for inductor DLCP
| TYPE | A | B max | C | D |
|---|---|---|---|---|
| DLCP110 | 10.5 | 9.5 | 5.5 | 0.7 |
| DLCP112 | 10.8 | 12.5 | 5.5 | 0.7 |
| DLCP114 | 10.8 | 14.5 | 5.5 | 0.7 |
Three-legged I-shaped inductor DLCP package size

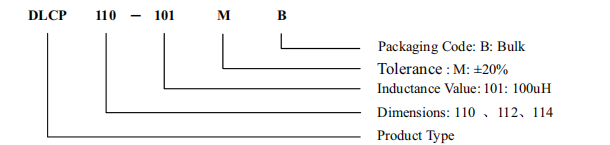

Common mode inductance DLCP coding system
