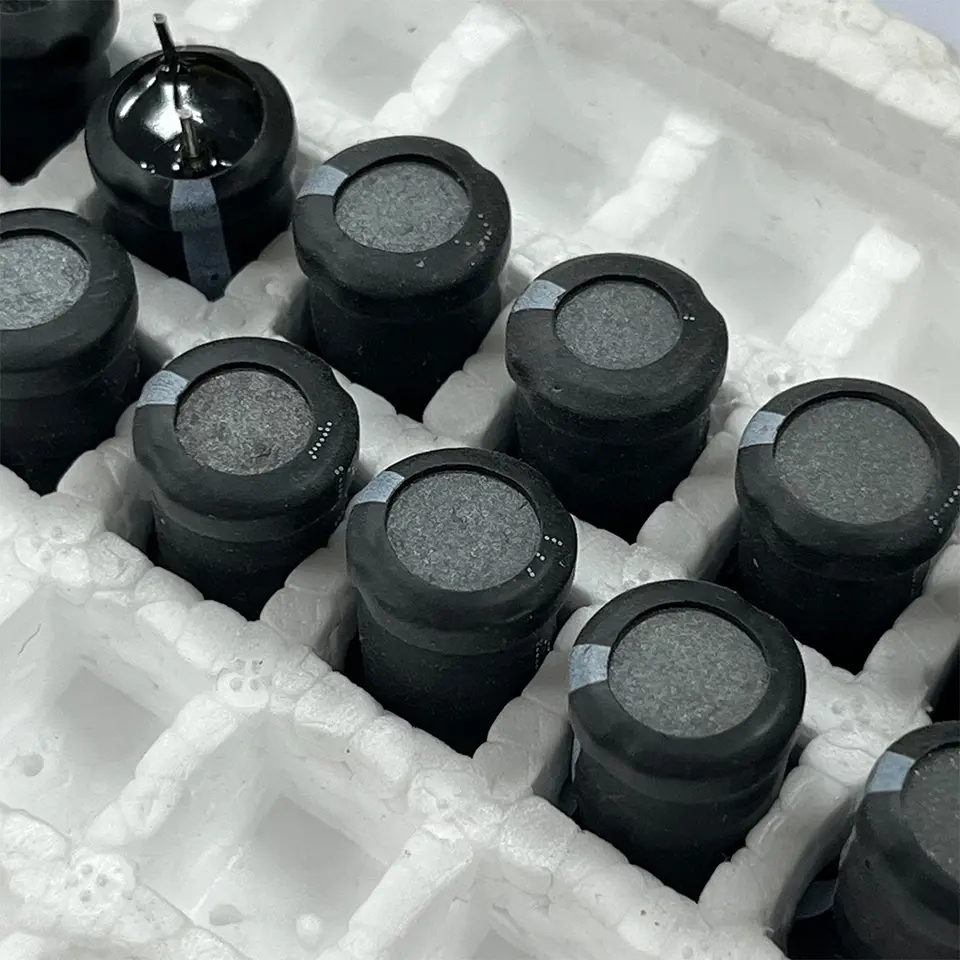

I-shaped inductor DLGBX1216 Series

Inquiry

Product Introduction

1.Optimized core architecture delivers excellent magnetic permeability, maintaining steady inductance under fluctuating loads.

2.Neat layered winding lessens stray capacitance, boosting performance in medium-frequency power conversion circuits.

3.Optimized terminal spacing avoids adjacent short-circuit risks and brings great convenience for PCB layout design.

4.Strict raw material screening guarantees low aging drift, securing long-term stable operation of finished equipment.

1.Medium-power switching power supplies

2.LED outdoor lighting drivers

3.Audio power amplifier modules

4.Smart charging equipment

5.Instrument and meter control circuits

Type	ΦA	B(max)	C(min)	E	F
DLGBX0406	4.5±0.5	7.0	10	0.6	2.0
DLGBX0608	6.5±1.0	10.0	10	0.6	3.0
DLGBX0810	8.5±1.0	12.0	10	0.6	5.0
DLGBX0912	9.5±1.0	14.0	10	0.6	5.0
DLGBX1010	12.0(max)	12.0	15	0.8	6.0
DLGBX1012	12.0(max)	16.5	15	0.8	6.0
DLGBX1016	12.0(max)	21.0	15	0.8	6.0
DLGBX1212	14.0(max)	16.5	15	0.8	7.5
DLGBX1820	18.0(max)	20.0	28	1.0	10.0

*Note: Dimensions can be customized according to customer requirements
