Recently, Gujing successfully assisted a global automotive-grade customer in solving a core failure problem of mass-produced power inductors. The customer’s original supplier’s standard inductors suffered severe inductance attenuation and magnetic saturation under high current operating conditions. Lacking professional technical debugging capabilities and standardized high-current testing systems, the original supplier failed to optimize and improve the products, which risked delaying the customer’s automotive project progress and failing vehicle-level reliability verification. Finally, the customer turned to Gujing for customized rectification and solution optimization.
This project targets 20KHz series inductors for automotive power circuits, with strict operating condition verification requirements. The original off-the-shelf inductors had unstable inductance consistency under variable DC bias current, unable to adapt to the dynamic current fluctuation scenarios of automotive electronic systems. To completely verify the product’s current resistance performance and solve the saturation defect, Gujing adopted a standardized and rigorous full-current-range test scheme based on IEC62024 high-frequency inductor measurement standards:

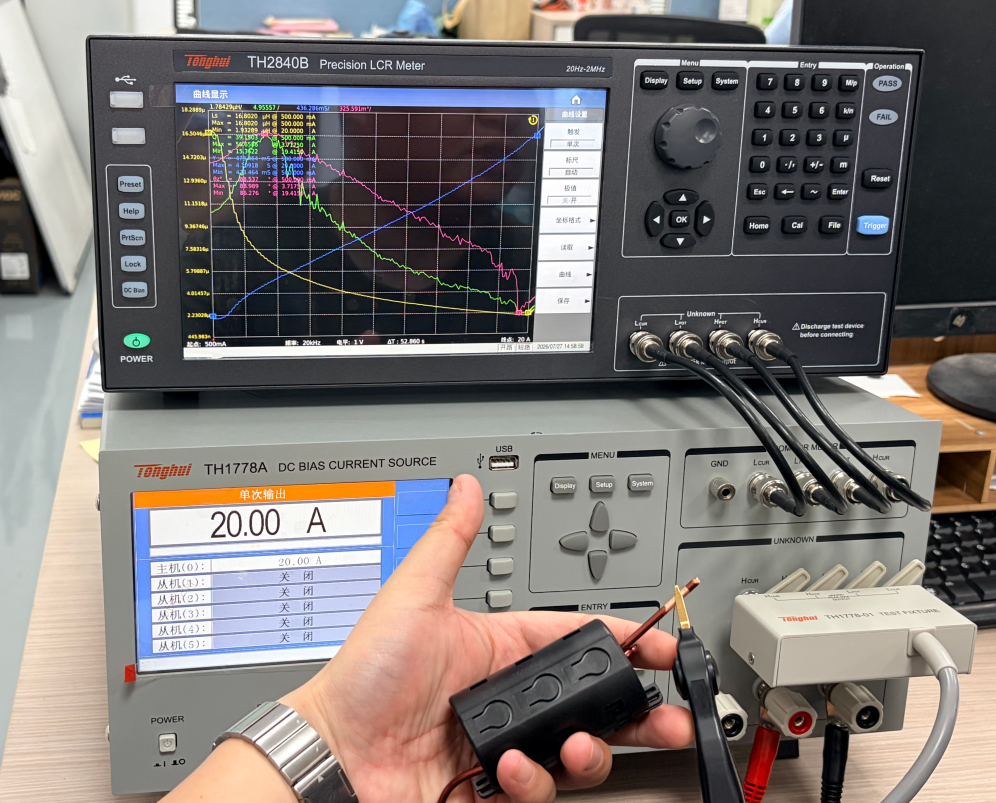

The test takes 0A DC bias current as the initial state, with a precise current stepping of 0.5A, continuously loading and testing up to 20A maximum current. The professional test system records the accurate inductance value of the inductor at each current node in real time, draws a complete L-I (inductance-current) characteristic curve, and accurately locates the magnetic saturation threshold and inductance attenuation rule of the original product, providing authentic data support for targeted optimization.
Based on the accurate test data and the customer’s actual automotive circuit load demands, Gujing’s R&D team launched targeted structural optimization. Adopting the 4mm² wire-through-core design recommended for high-current automotive scenarios, the team adjusted and optimized the inductor winding structure and winding turns ratio. The optimized inductor effectively suppresses high-current magnetic saturation, significantly improves inductance stability under full-range bias current, perfectly matches the 20KHz series circuit operating frequency, and fully meets automotive-grade long-term stable operating requirements.
In this automotive-level high-current inductor rectification project, Gujing highlights three core competitive advantages that distinguish it from ordinary component suppliers, winning high recognition from overseas customers:
1. Professional Automotive-Grade Testing Capabilities, Data-Supported Reliability
Different from suppliers lacking high-current test conditions, Gujing is equipped with a complete DC bias current test system, supporting 0-20A full-range stepping test with 0.5A high-precision intervals. It can complete full-parameter calibration of inductance, saturation characteristics and high-frequency performance under actual working conditions, strictly complying with international automotive electronic component testing standards. All performance improvements are based on objective test data, eliminating unstable product risks caused by empirical debugging.
2. Custom Winding Optimization, Targeted Solving of High-Current Defects
Aiming at the core problem of insufficient current resistance of the original inductor, Gujing does not adopt generic improvement schemes. Combined with the 20KHz high-frequency series circuit characteristics and automotive high-current impact working conditions, we customize the wire gauge specification and winding structure, optimize the magnetic flux distribution of the through-core inductor, effectively improve the product’s anti-saturation ability, and achieve stable inductance output under full current load.
3. Independent R&D & Landing Strength, Efficiently Resolving Customer Pain Points
Facing the technical dilemma that the original supplier could not break through, Gujing realizes one-stop service from fault diagnosis, full-performance testing, scheme optimization to product sample verification. It efficiently solves the customer’s urgent problem of unqualified automotive inductor current performance, avoids project delay risks, and provides reliable, customizable and high-reliability inductor solutions for overseas automotive electronic projects.
With the rapid upgrading of automotive electronic technology, higher requirements are put forward for the high-current stability and anti-saturation performance of power inductors. Gujing will continue to focus on automotive-grade high-standard component customization, rely on professional testing systems and independent R&D capabilities, continuously optimize product performance, and provide more high-quality and reliable magnetic component solutions for global automotive and industrial power electronic customers.
