Gujing GTC3316 Magnetic Loop Inductor: Breaking the Customer's Problem of Export Audio Delivery Time and Cost with Excellent Alternative Solution
In today's increasingly competitive international audio market, high-end audio brands not only need to pursue the ultimate sound quality performance, but also need to cope with the severe challenges brought by supply chain fluctuations. Recently, Gujing successfully assisted an audio company that has been deeply involved in overseas markets for a long time, solving its core component supply crisis that had plagued it for months through a high-performance alternative magnetic ring inductor.
Customer dilemma: supply chain crisis caused by imported magnetic rings
The customer has been producing a high-end export audio product for a long time, with extremely strict performance requirements for internal components. At the beginning of the project, in order to ensure product quality, imported magnetic rings of specific specifications were selected as key inductance components in the power filter circuit. However, with the changing international economic and trade environment, high tariffs and lengthy delivery times that can take months seriously disrupt customers' production pace, resulting in their inability to meet the delivery needs of end customers.
The dissatisfaction of end customers continues to accumulate, not only severely criticizing delivery delays, but also pointing out that product prices no longer have a competitive advantage and explicitly demanding price reductions. Under the dual pressure, finding a domestically produced magnetic ring replacement solution with comparable performance, shorter delivery time, and better cost has become the top priority for customers.
The alternative path: EMC testing becomes an insurmountable gap
Before contacting Gu Jing, the customer had already tried to contact multiple inductor suppliers. During this period, although some manufacturers were able to provide magnetic ring samples with similar specifications and preliminary compliance in basic electrical performance testing, the samples unfortunately failed every time they entered the crucial electromagnetic compatibility (EMC) testing stage. EMC performance is a key indicator for measuring the compatibility of electronic products with environmental electromagnetic pollution, and for audio products, it is a core element that directly affects the purity and stability of sound quality. Multiple attempts failed, leaving the customer's alternative path at a standstill.
Gujing Intervention: Deep Technology Integration and Precise Selection
The turning point occurred when the customer searched online and learned about successful cases of Gujing in the field of brand inductor solutions, and actively contacted through the official website. The Gujing technical team attaches great importance to it and has conducted in-depth technical docking with customers in the first time.
After a detailed study of the original samples sent by the customer, and a comprehensive understanding of their specific role in the entire circuit architecture, operating current, filtering requirements, and the key points of previous EMC test failures, the Gujing technology team, with their profound understanding of magnetic materials and massive application data support, accurately focused their attention on the GTC3316 magnetic ring.

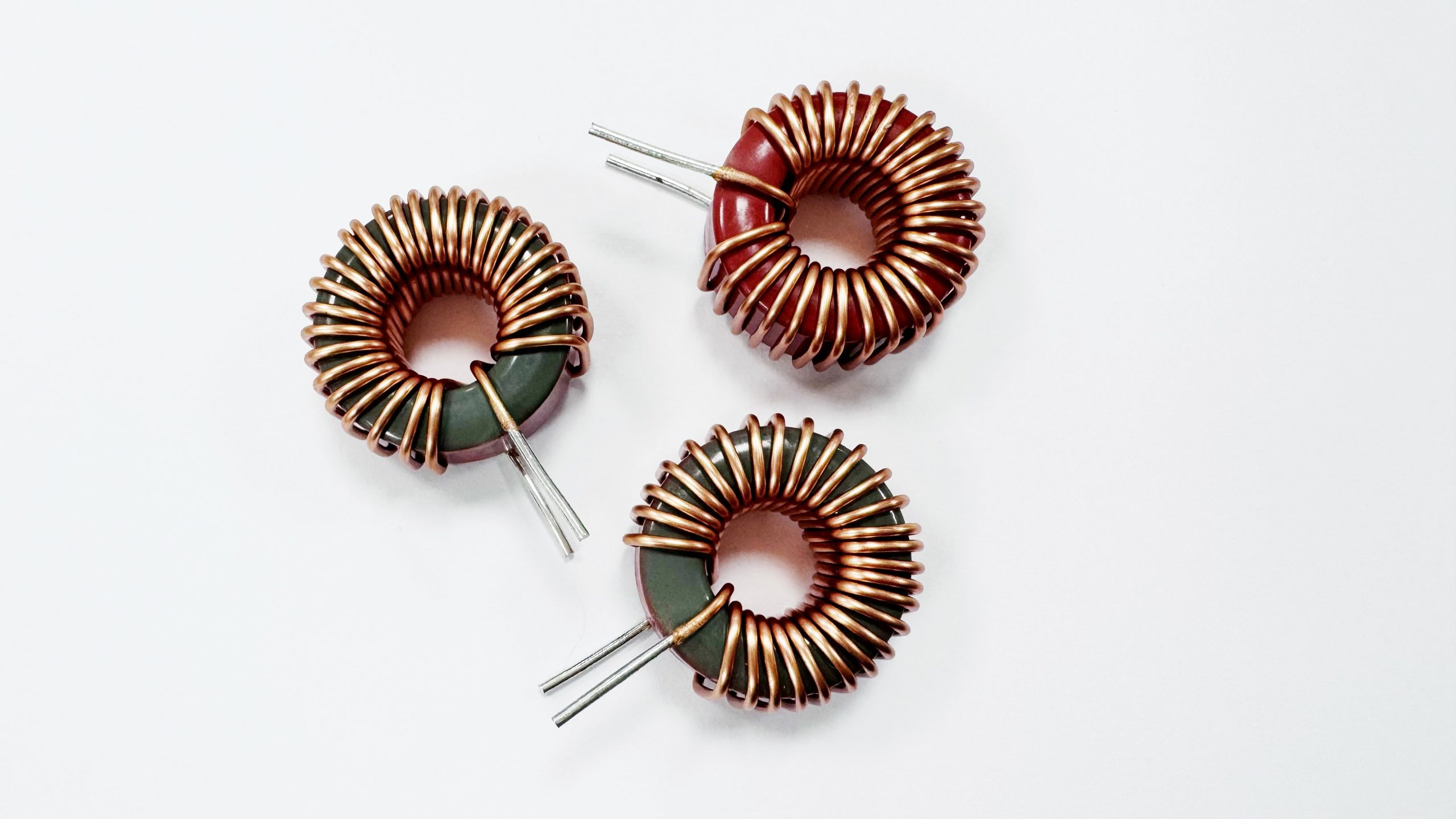

GTC3316 Solution: A Perfect Balance of Performance, Cost, and Delivery Time
Gujing quickly provided customers with GTC3316 magnetic ring samples for testing and verification. The results are exciting:
1. Fully matched or even better performance:

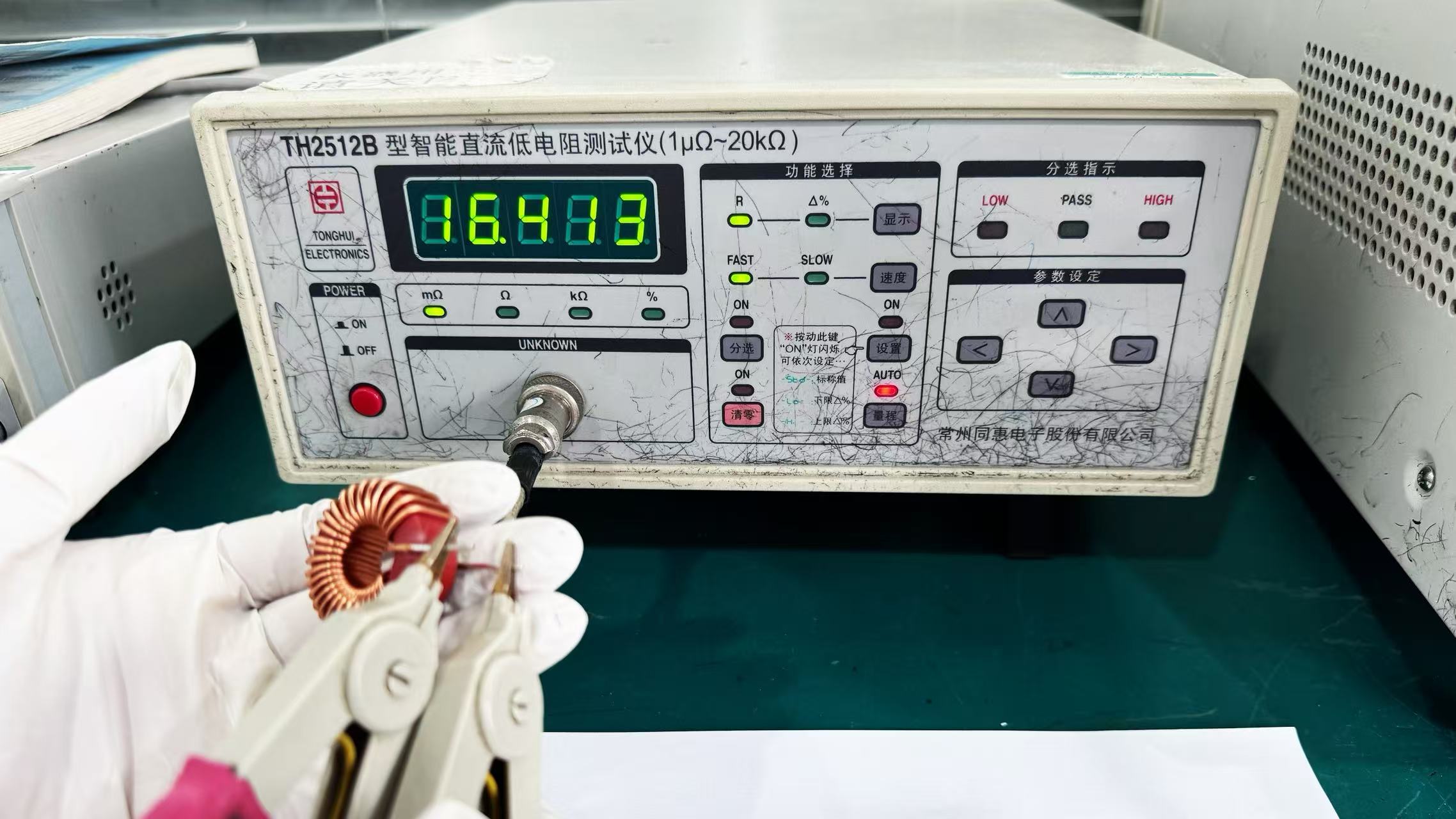

DC resistance (DCR): The customer's original value is 17.38m Ω, and the measured value of the Gujing GTC3316 sample is 16.51-16.69m Ω. A lower DCR means less power loss and better energy efficiency.

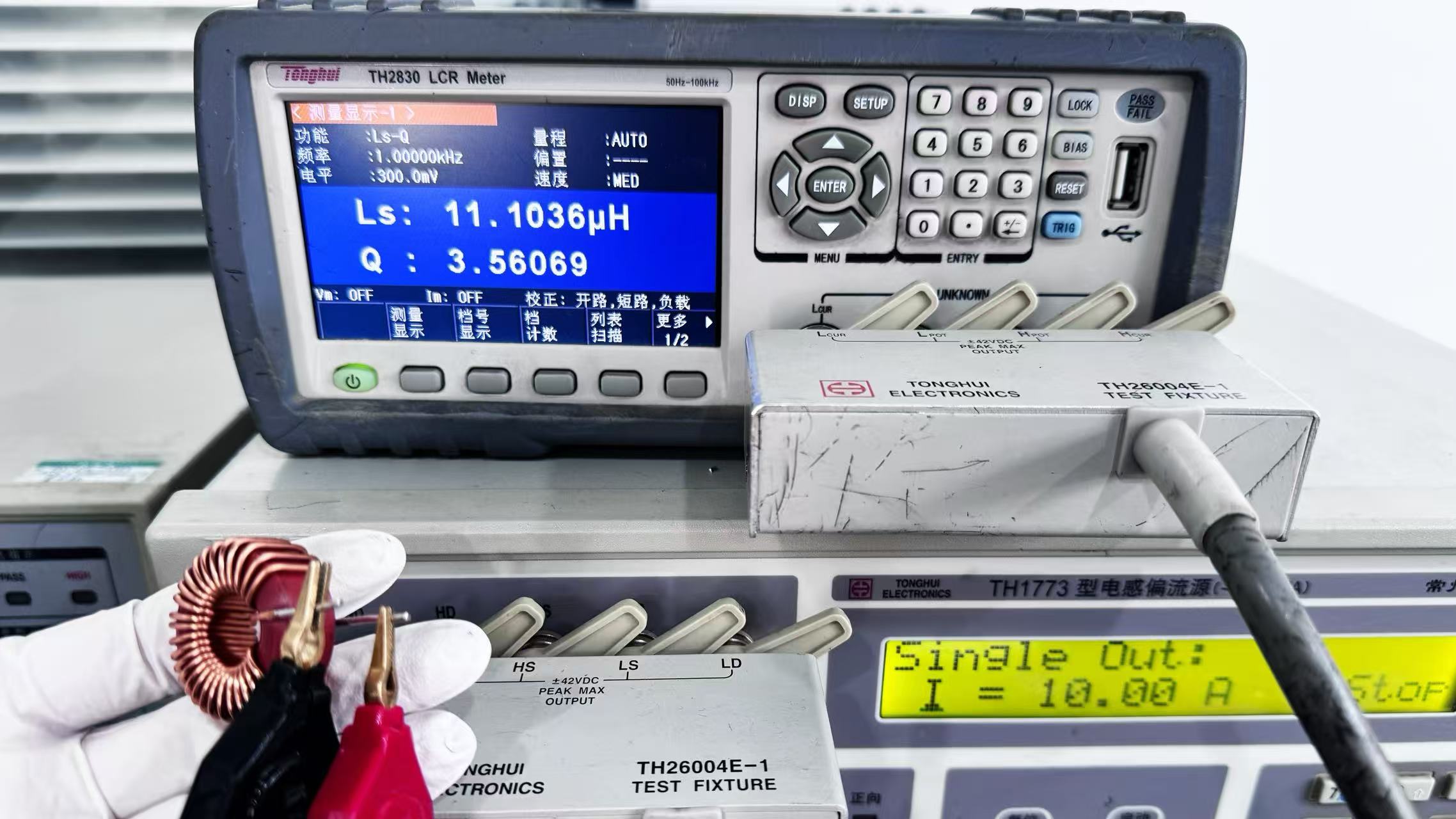

Inductance value (L): The customer's original sample is 10.3uH, and the Gujing GTC3316 sample is between 10.6-11.5uH, fully meeting the circuit design tolerance requirements.
Molding method: Using the same vertical installation method, the dimensions of the Gujing sample (diameter 30.24mm, height 28.89mm, thickness 13.80mm) are close to the original height, ensuring good compatibility and installation convenience on the PCB board.
Successfully overcoming the EMC challenge: The most crucial breakthrough was the use of the Gujing GTC3316 magnetic ring inductor, which successfully passed the previously failed EMC tests in one go, proving its excellent noise suppression and stable working ability in complex electromagnetic environments.
2. Significant supply chain advantages:
Significant reduction in delivery time: With the support of localized production and a mature supply chain system, the delivery time has been shortened from several months to several weeks, effectively ensuring the continuity of customer production.
Significant cost reduction: The comprehensive cost has been reduced by nearly 20% compared to the original import plan, effectively responding to the demand for price reduction from end customers and enhancing the competitiveness of the product in the market.
The cornerstone behind success: Gu Jing's 23 years of material science accumulation and customization capabilities
The success of this substitution is by no means accidental. It deeply reflects Gu Jing's 23 year technological accumulation and professional advantages in the field of magnetic components. Gu Jing is well aware that the performance core of magnetic ring inductors lies in the magnetic core material. For over 20 years, we have accumulated a wide variety of magnetic powder formulations and preparation processes, and established a massive material database. This enables our technical engineers to quickly match or customize the most suitable magnetic core materials for different application scenarios (such as high frequency, high current, wide temperature range, high reliability, etc.) and specific circuit requirements.
In this case, it was based on precise analysis of the customer's circuit topology, noise spectrum characteristics, and EMC testing standards that the Gujing technical team was able to accurately select the exclusive magnetic core formula for GTC3316 from numerous candidate materials, which achieved the best balance in magnetic permeability, saturation magnetic flux density, frequency characteristics, loss, and temperature stability, thus achieving a perfect replacement and even surpassing of imported brands in key performance.
