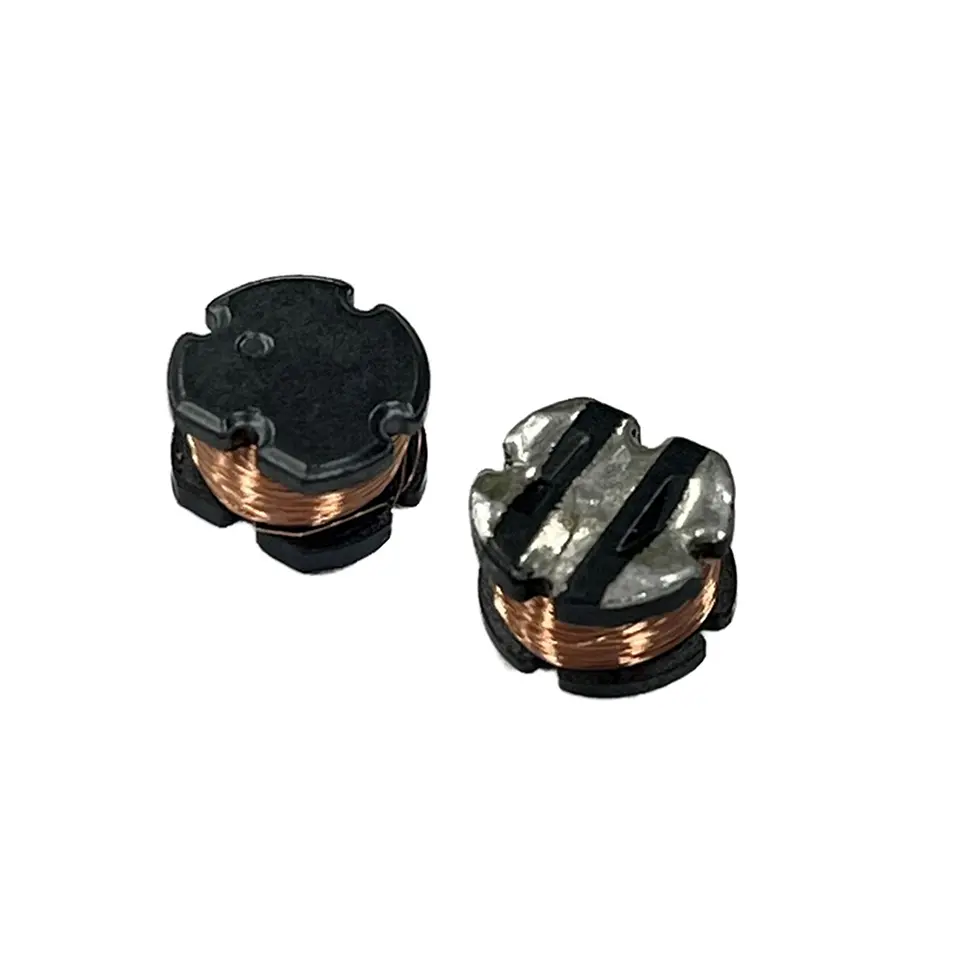

Low RDC GCD75 Unshielded Chip Inductor Network Switch Auxiliary Power Circuit
Inquiry
TDS DownloadProduct Introduction
The advantages of GCD inductors (power inductors) are as follows
1.High cost-effectiveness: unshielded structure, simple process, low cost, suitable for large-scale applications.
2.Good electrical performance: low DCR, high current, high Q value, stable high-frequency characteristics, and excellent filtering effect.
3.Flexible adaptation: Small size, multiple options, support for customized sensing values and wire diameters, compatible with various power circuits.
GCD series
List of package dimensions for GCD Series
| TYPE | A ±0.3 | B ±0.3 | C max | D | E | F | G | H |
|---|---|---|---|---|---|---|---|---|
| GCD30 | 3.00 | 3.50 | 1.30 | 1.00 | 1.30 | 0.90 | 1.30 | 3.50 |
| GCD31 | 3.00 | 3.50 | 1.80 | 1.00 | 1.30 | 0.90 | 1.30 | 3.50 |
| GCD32 | 3.00 | 3.50 | 2.40 | 1.00 | 1.30 | 0.90 | 1.30 | 3.50 |
| GCD42 | 4.00 | 4.50 | 2.30 | 1.50 | 1.80 | 1.20 | 1.80 | 4.50 |
| GCD43 | 4.00 | 4.50 | 3.50 | 1.50 | 1.80 | 1.20 | 1.80 | 4.50 |
| GCD51 | 5.20 | 5.80 | 2.30 | 1.50 | 2.70 | 1.20 | 2.70 | 5.80 |
| GCD52 | 5.20 | 5.80 | 2.80 | 2.00 | 2.40 | 1.80 | 2.40 | 5.80 |
| GCD53 | 5.20 | 5.80 | 3.80 | 1.80 | 2.70 | 1.20 | 2.70 | 5.80 |
| GCD54 | 5.20 | 5.80 | 4.80 | 1.50 | 2.60 | 1.40 | 2.60 | 5.80 |
| GCD73 | 7.00 | 7.80 | 3.80 | 2.50 | 3.00 | 2.00 | 3.00 | 7.50 |
| GCD75 | 7.00 | 7.80 | 5.20 | 2.50 | 3.00 | 2.00 | 3.00 | 7.50 |
| GCD104 | 9.00 | 10.0 | 4.20 | 3.20 | 3.75 | 2.50 | 3.75 | 9.50 |
| GCD105 | 9.00 | 10.0 | 5.80 | 3.20 | 3.75 | 2.50 | 3.75 | 9.50 |
| GCD106 | 9.00 | 10.0 | 7.50 | 3.20 | 3.75 | 2.50 | 3.75 | 9.50 |
| GCD108 | 9.00 | 10.0 | 8.50 | 3.20 | 3.75 | 2.50 | 3.75 | 9.50 |
Product dimensions
