Home > Products > SMD Inductor > GBD1811 Unshielded SMD Power Inductor For Cordless Drill Control Circuit
SMD Inductor

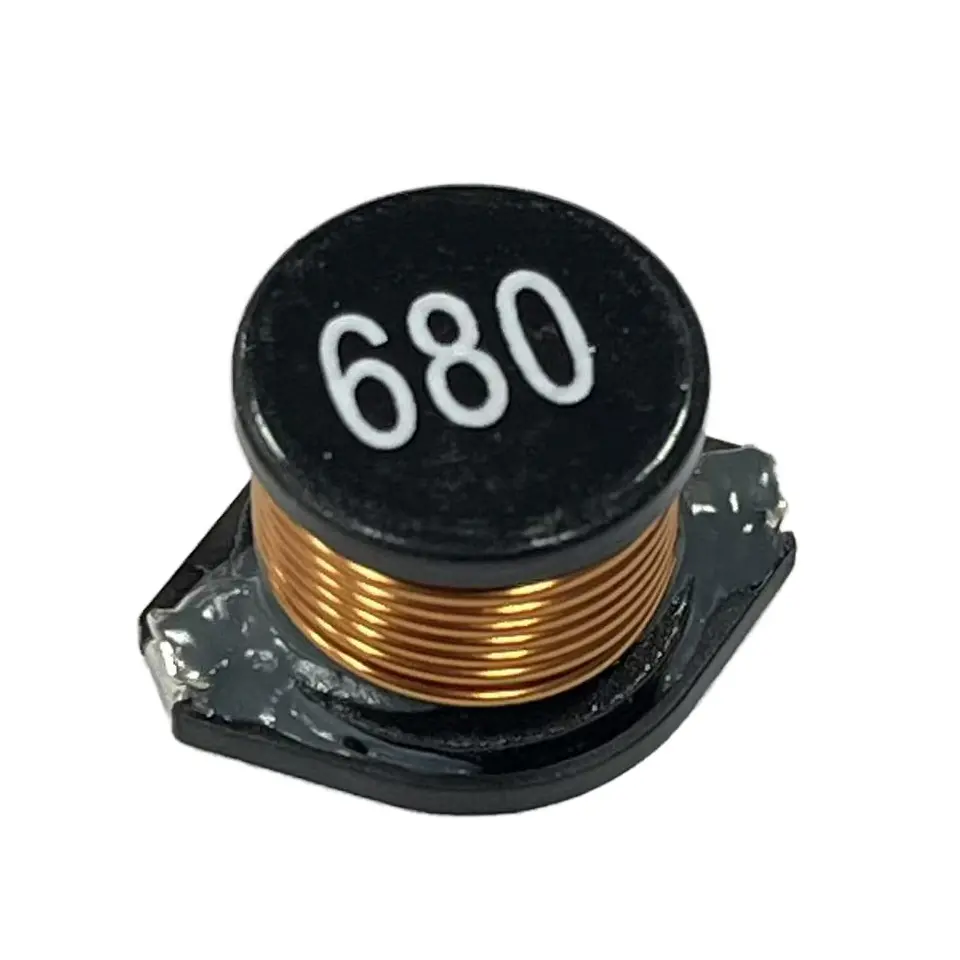

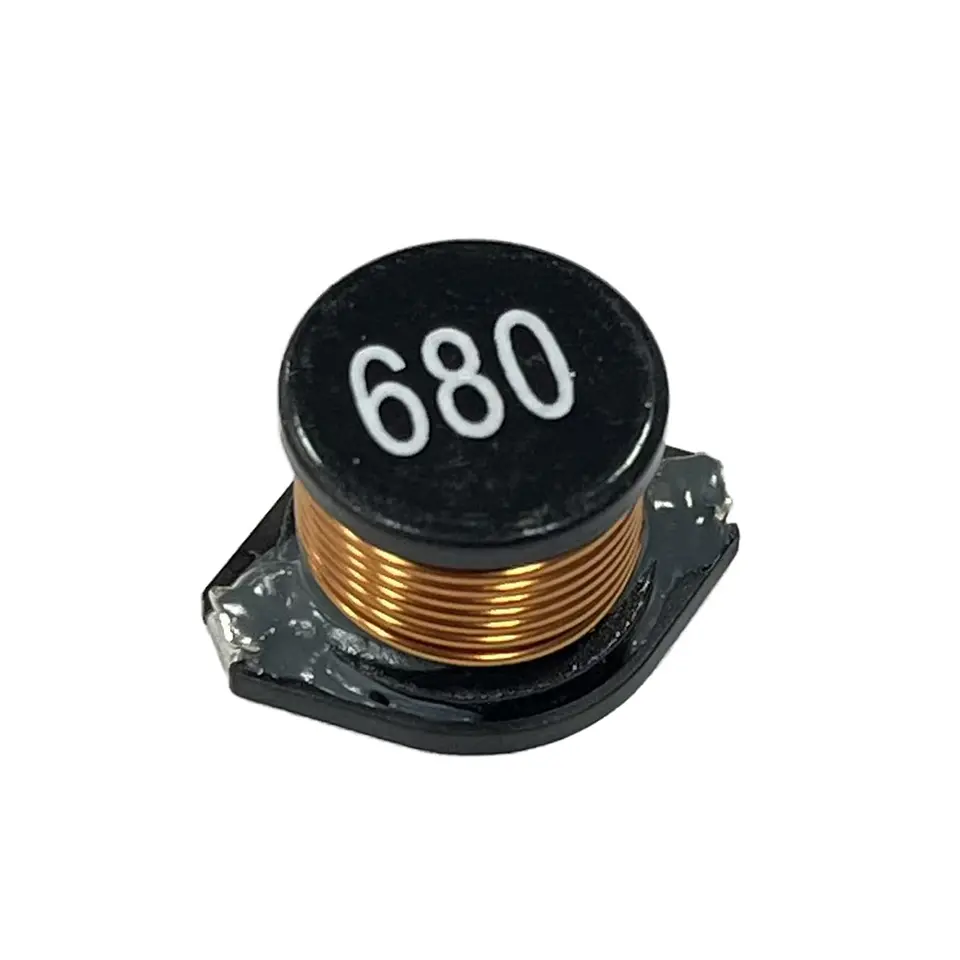

GBD1811 Unshielded SMD Power Inductor For Cordless Drill Control Circuit
Inquiry
TDS DownloadProduct Introduction
Advantages of Gu Jing unshielded inductors
1. Compact 1811 patch size, compatible with automatic SMT mounting, saves PCB layout space
2. Stable inductance & low DCR, low power loss, delivers smooth power conversion performance
3.Strict batch consistency,RoHS compliant,fast sampling & customized parameter support from our 23-year inductor factory
GBD Series
Product Specifications
| TYPE | A max | B max | C max | D |
|---|---|---|---|---|
| GBD1608 | 6.9 | 4.5 | 2.9 | 4.0 |
| GBD3316 | 13.5 | 10.0 | 5.2 | 8.4 |
| GBD3340 | 14.5 | 10.0 | 11.4 | 8.4 |
| GBD5022 | 19.0 | 14.3 | 6.8 | 12.7 |

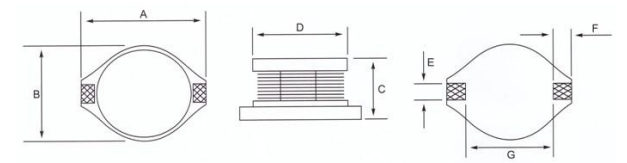

GBD series unshielded inductor size diagram

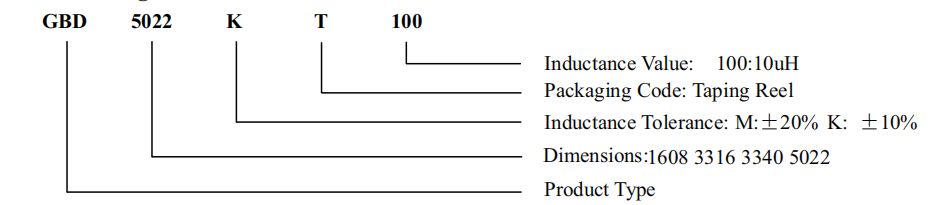

GBD coding system for surface mount inductors
