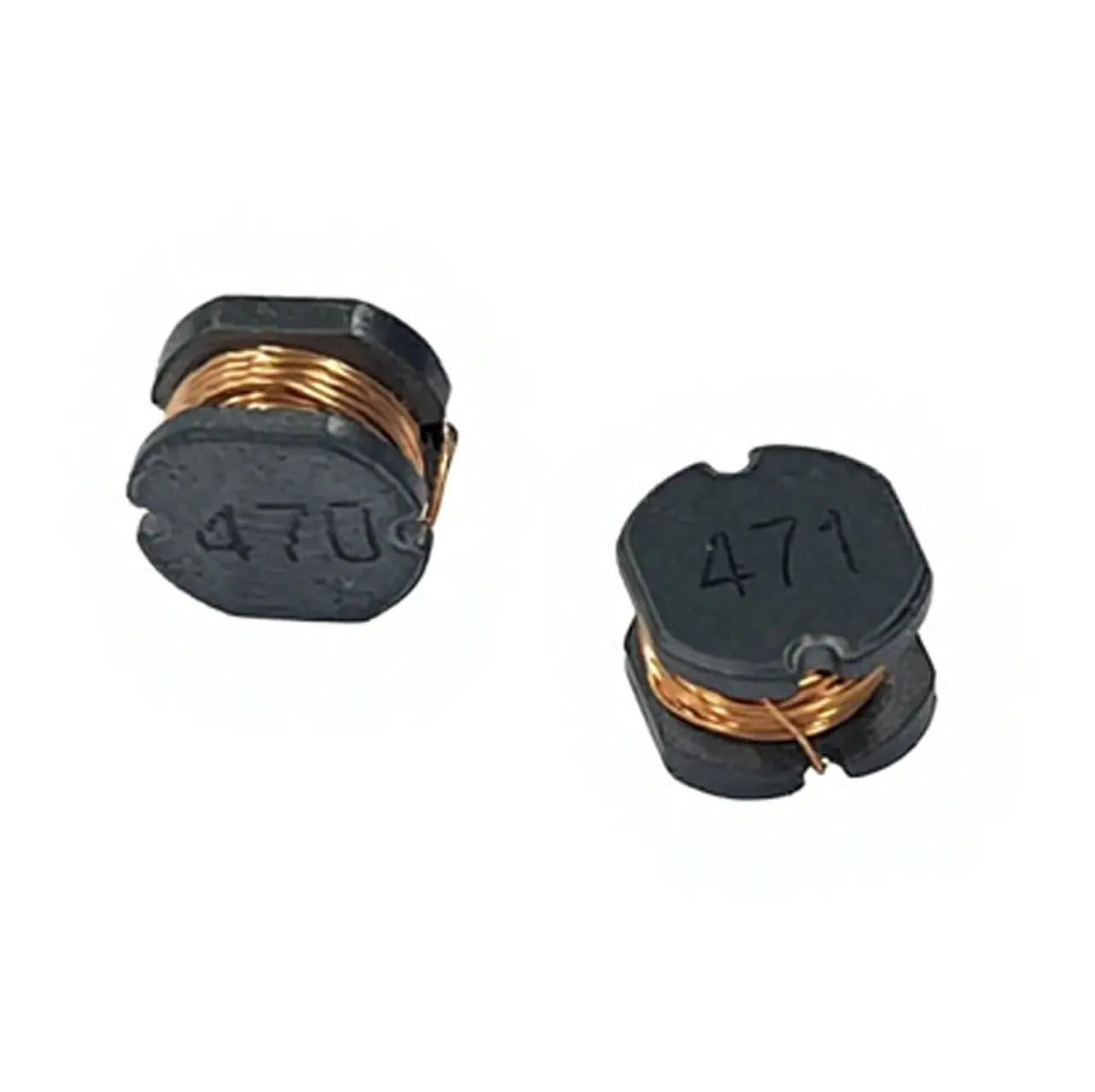

GCD52 Unshielded SMD Inductor For Small Solar Controller Power Board

Inquiry

Product Introduction

1. Compact & Low-profile - Surface mount design with small footprint and thin profile saves PCB space.

2. High Energy Storage - Optimized magnetic structure supports high energy storage capacity in a miniature package

3.High Saturation Current - Delivers excellent current handling with high saturation current characteristics

4.Low DcR- Low DC resistance design minimizes power loss and improves efficiency

5. RoHs Compliant & Process-Friendly -Lead-free and environmentally friendly, suitable for reflow soldering processes.

TYPE	A ±0.3	B ±0.3	C max	D	E	F	G	H
GCD30	3.00	3.50	1.30	1.00	1.30	0.90	1.30	3.50
GCD31	3.00	3.50	1.80	1.00	1.30	0.90	1.30	3.50
GCD32	3.00	3.50	2.40	1.00	1.30	0.90	1.30	3.50
GCD42	4.00	4.50	2.30	1.50	1.80	1.20	1.80	4.50
GCD43	4.00	4.50	3.50	1.50	1.80	1.20	1.80	4.50
GCD51	5.20	5.80	2.30	1.50	2.70	1.20	2.70	5.80
GCD52	5.20	5.80	2.80	2.00	2.40	1.80	2.40	5.80
GCD53	5.20	5.80	3.80	1.80	2.70	1.20	2.70	5.80
GCD54	5.20	5.80	4.80	1.50	2.60	1.40	2.60	5.80
GCD73	7.00	7.80	3.80	2.50	3.00	2.00	3.00	7.50
GCD75	7.00	7.80	5.20	2.50	3.00	2.00	3.00	7.50
GCD104	9.00	10.0	4.20	3.20	3.75	2.50	3.75	9.50
GCD105	9.00	10.0	5.80	3.20	3.75	2.50	3.75	9.50
GCD106	9.00	10.0	7.50	3.20	3.75	2.50	3.75	9.50
GCD108	9.00	10.0	8.50	3.20	3.75	2.50	3.75	9.50
