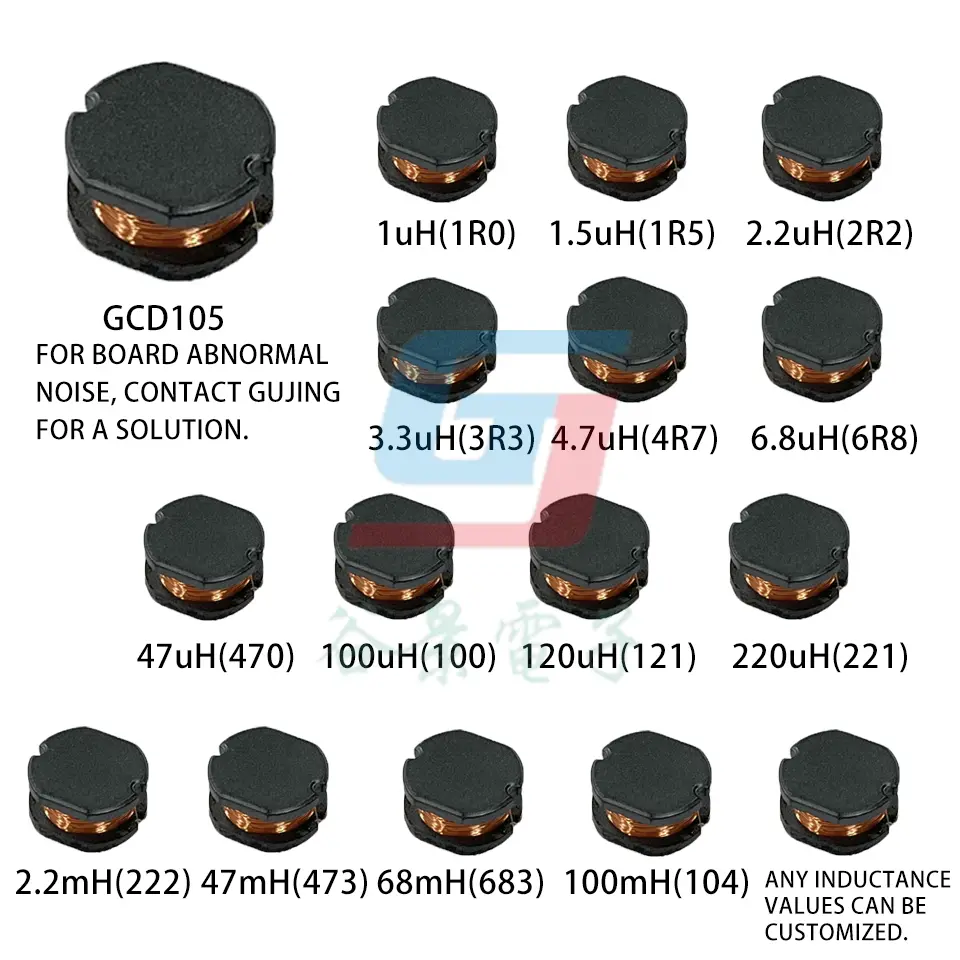

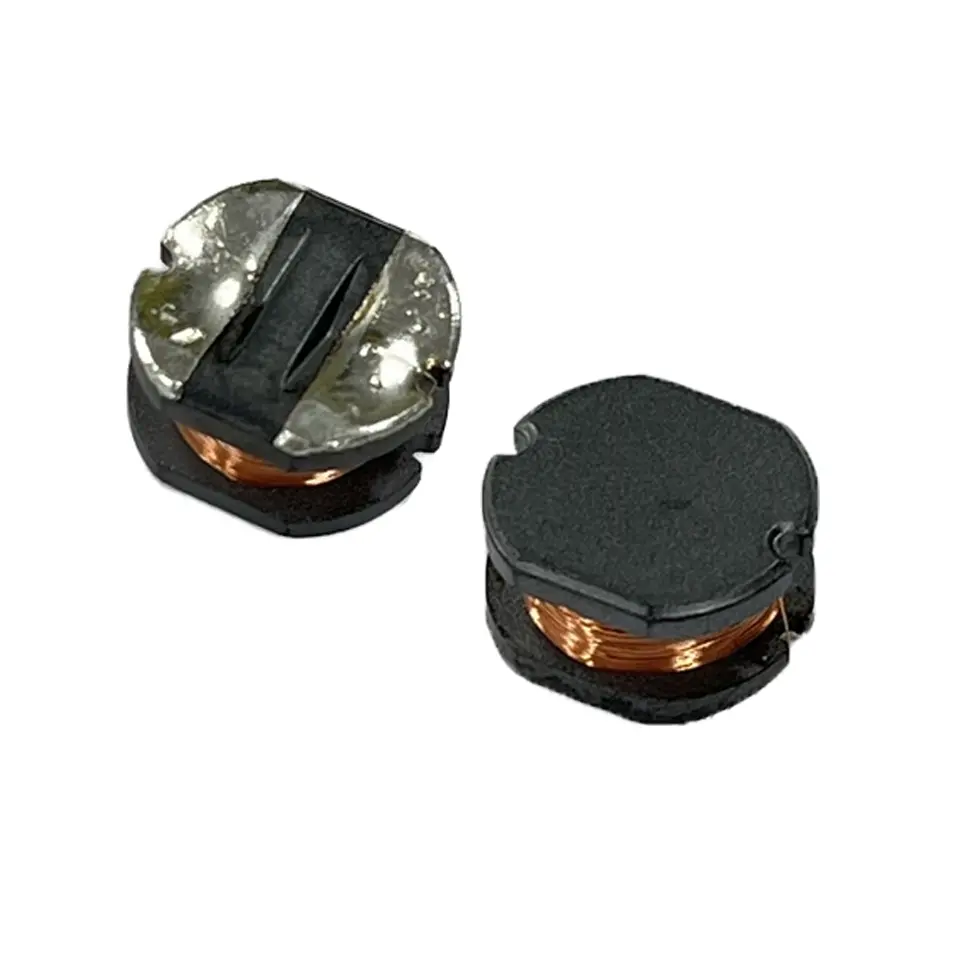

GCD105 Unshielded SMD Inductor For Digital Multimeter Power Circuit

Inquiry

Product Introduction

1.High Current Handling: Supports up to 1.6A (IDC) with Iow DCR (234mQ Max) .

2.Shielded Construction: Features a shielded design to minimize electromagnetic interference(EMI).

3.Wide Temperature Range: Operates reliably from -40°C to +125°C.

4.Customizable & Certified: Available with custom specs and holds IATF16949, RoHS, and REACH certifications.

TYPE	A ±0.3	B ±0.3	C max	D	E	F	G	H
GCD30	3.00	3.50	1.30	1.00	1.30	0.90	1.30	3.50
GCD31	3.00	3.50	1.80	1.00	1.30	0.90	1.30	3.50
GCD32	3.00	3.50	2.40	1.00	1.30	0.90	1.30	3.50
GCD42	4.00	4.50	2.30	1.50	1.80	1.20	1.80	4.50
GCD43	4.00	4.50	3.50	1.50	1.80	1.20	1.80	4.50
GCD51	5.20	5.80	2.30	1.50	2.70	1.20	2.70	5.80
GCD52	5.20	5.80	2.80	2.00	2.40	1.80	2.40	5.80
GCD53	5.20	5.80	3.80	1.80	2.70	1.20	2.70	5.80
GCD54	5.20	5.80	4.80	1.50	2.60	1.40	2.60	5.80
GCD73	7.00	7.80	3.80	2.50	3.00	2.00	3.00	7.50
GCD75	7.00	7.80	5.20	2.50	3.00	2.00	3.00	7.50
GCD104	9.00	10.0	4.20	3.20	3.75	2.50	3.75	9.50
GCD105	9.00	10.0	5.80	3.20	3.75	2.50	3.75	9.50
GCD106	9.00	10.0	7.50	3.20	3.75	2.50	3.75	9.50
GCD108	9.00	10.0	8.50	3.20	3.75	2.50	3.75	9.50
