TDS DownloadProduct Introduction

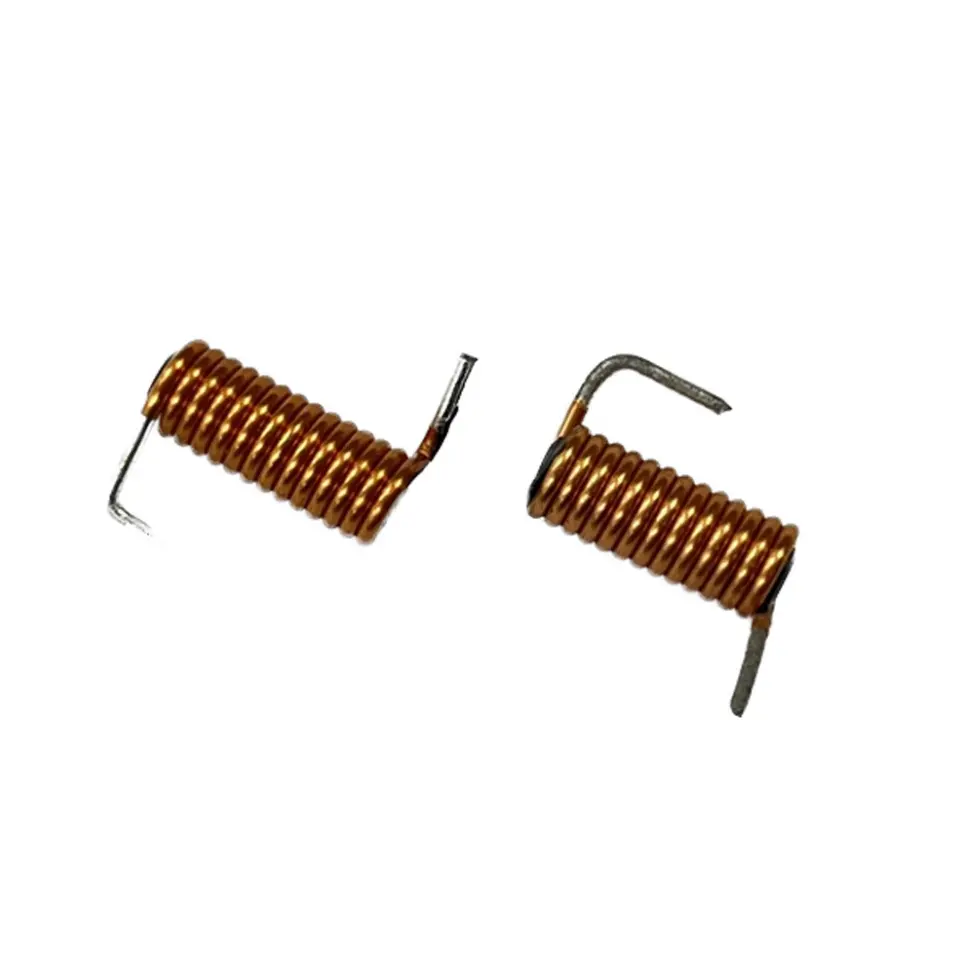

Advantages of Gu Jing's customized rod-type inductor
1. Self developed magnetic powder formula, excellent magnetic conductivity of the core, and higher saturation current
2. Precise winding and dipping process, sturdy and vibration resistant structure, passed vehicle grade reliability testing
3. Quick customization from the source factory, 7 × 24-hour FAE technical support, controllable delivery time
The main application industries of rod-type inductors are summarized as follows
- Automotive electronics: vehicle control unit, on-board charger
- Industrial power: SMPS, power tools, photovoltaic energy storage
- Communication & consumer: 5G equipment, home appliances, audio amplifier
GR Series
Product Specifications
| Type | ΦA | B | Type | ΦA | B |
|---|---|---|---|---|---|
| 2*9 | 2.0±0.15 | 9.0±0.3 | 6*20 | 6.0±0.25 | 20±0.5 |
| 3*12 | 3.0±0.15 | 12±0.3 | 6*25 | 6.0±0.25 | 25±0.5 |
| 3*15 | 3.0±0.15 | 15±0.3 | 6*30 | 6.0±0.25 | 30±0.6 |
| 4*15 | 4.0±0.20 | 15±0.3 | 8*20 | 8.0±0.30 | 20±0.5 |
| 4*16 | 4.0±2.00 | 16±0.3 | 8*32 | 8.0±0.30 | 32±06 |
| 5*20 | 5.0±0.20 | 20±0.5 | 8*40 | 8.0±0.30 | 40±0.8 |
| 5*30 | 5.0±0.20 | 30±0.6 | 10*20 | 10.0±0.4 | 20±0.5 |
| 6*15 | 6.0±0.25 | 15±0.3 | 10*30 | 10.0±0.4 | 30±0.6 |
| 6*18 | 6.0±0.25 | 18±0.5 | 10*32 | 10.0±0.4 | 32±0.6 |
