TDS DownloadProduct Introduction

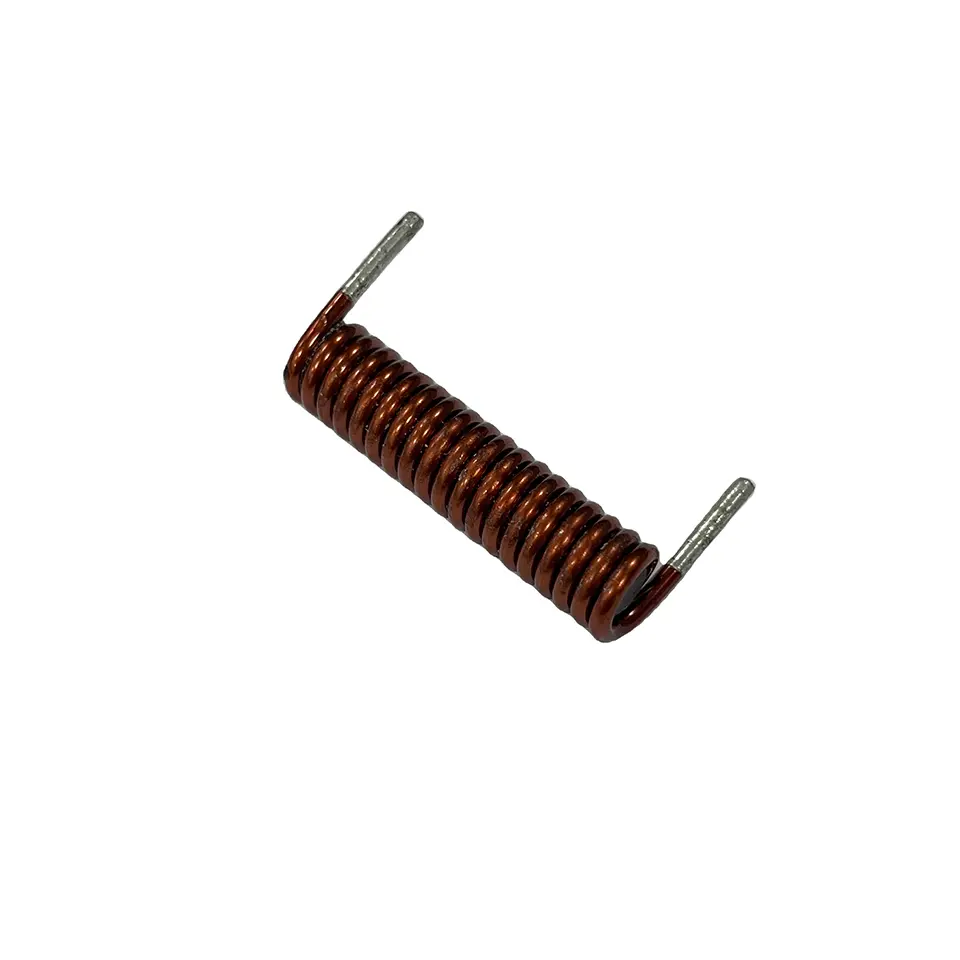

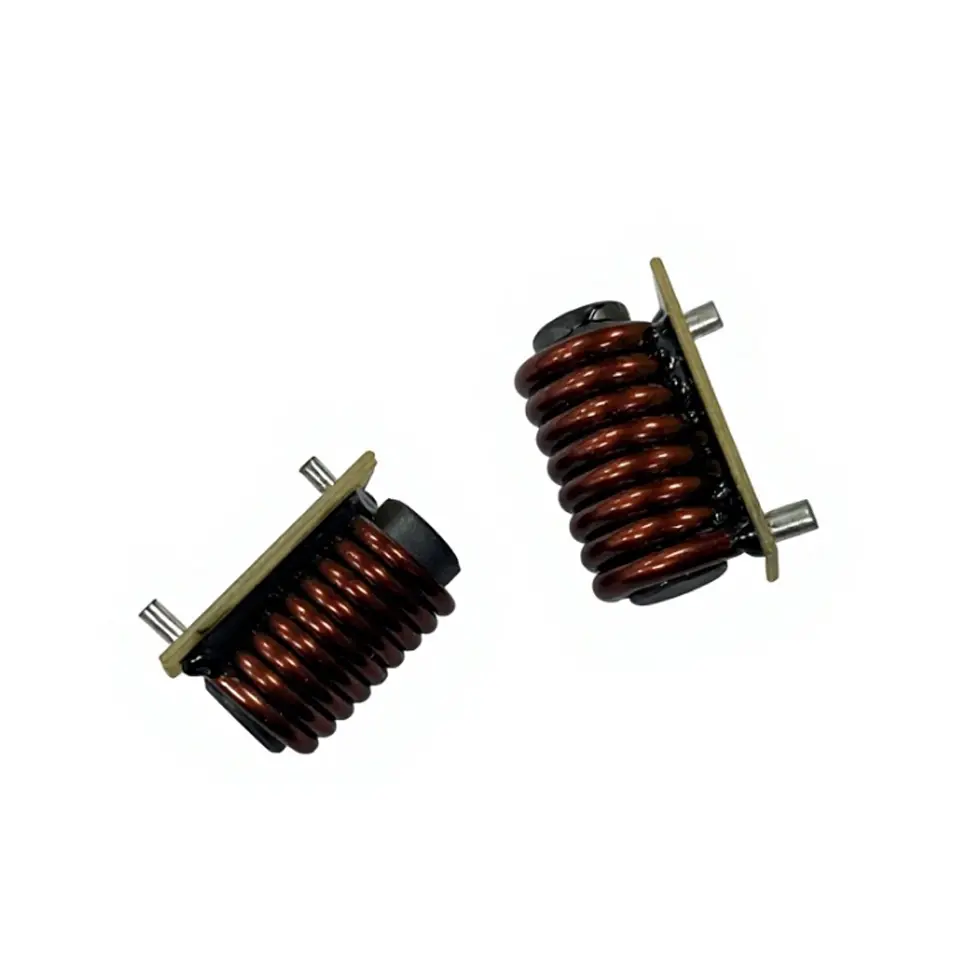

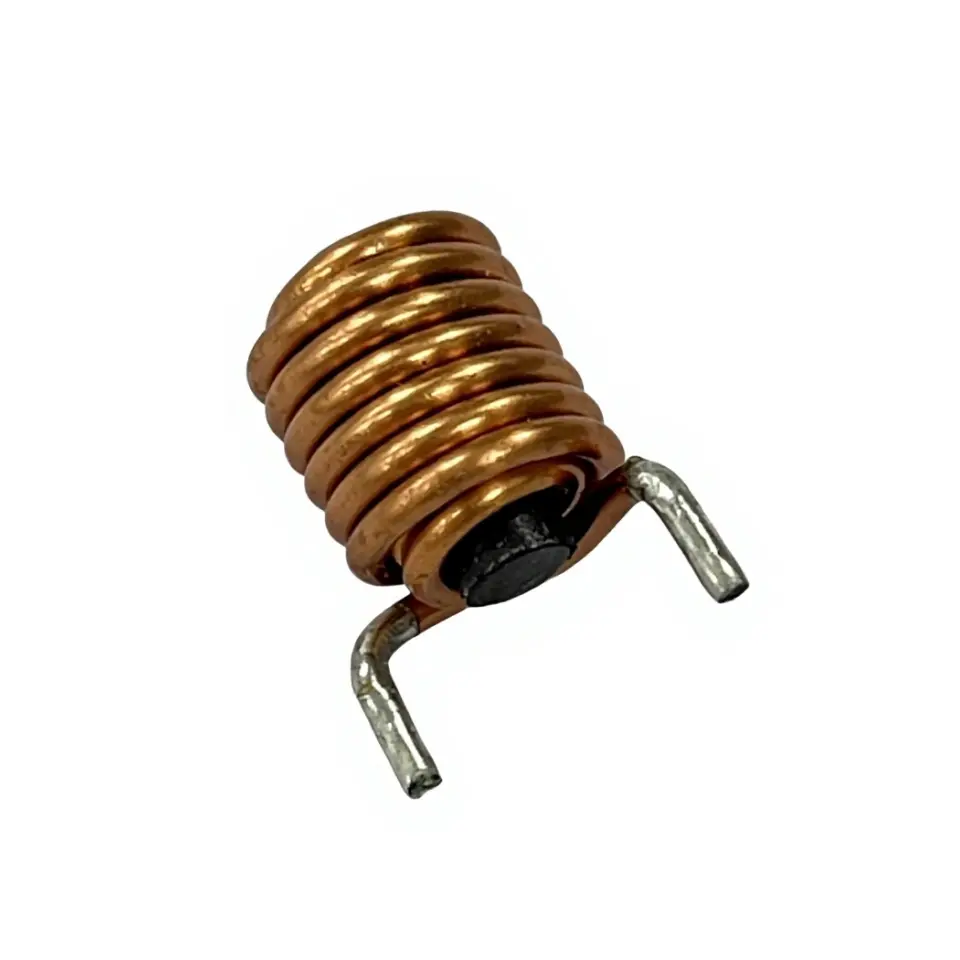

Advantages of Gu Jing's customized rod-type inductor
1. High current and low loss: Thick wire diameter, low DCR, minimal heat generation, easily handling high current surges.
2. High reliability and shock resistance: The structure is sturdy, resistant to falls and shocks, exhibits excellent temperature tolerance, and adapts well to harsh environments.
3. High-frequency and high Q value: Open magnetic circuit design, high Q value, small parasitic capacitance, and stable high-frequency performance.
4. Customization flexibility: Supports horizontal/vertical and special parameter customization, adapting to various PCB layout requirements.
The main application industries of rod-type inductors are summarized as follows
1.Power supply industry: switching power supplies, adapters, LED drivers.
2.Communication network: base station, radio frequency (RF) module, filter.
3.Industrial control: frequency converter, inverter, UPS power supply.
4.Consumer electronics: set-top boxes, televisions, displays.
GR Series
Product Specifications
| Type | ΦA | B | Type | ΦA | B |
|---|---|---|---|---|---|
| 2*9 | 2.0±0.15 | 9.0±0.3 | 6*20 | 6.0±0.25 | 20±0.5 |
| 3*12 | 3.0±0.15 | 12±0.3 | 6*25 | 6.0±0.25 | 25±0.5 |
| 3*15 | 3.0±0.15 | 15±0.3 | 6*30 | 6.0±0.25 | 30±0.6 |
| 4*15 | 4.0±0.20 | 15±0.3 | 8*20 | 8.0±0.30 | 20±0.5 |
| 4*16 | 4.0±2.00 | 16±0.3 | 8*32 | 8.0±0.30 | 32±06 |
| 5*20 | 5.0±0.20 | 20±0.5 | 8*40 | 8.0±0.30 | 40±0.8 |
| 5*30 | 5.0±0.20 | 30±0.6 | 10*20 | 10.0±0.4 | 20±0.5 |
| 6*15 | 6.0±0.25 | 15±0.3 | 10*30 | 10.0±0.4 | 30±0.6 |
| 6*18 | 6.0±0.25 | 18±0.5 | 10*32 | 10.0±0.4 | 32±0.6 |
