Home > Products > Compatible Inductor > Multi-Size GSHM Series Molded Power Inductor For Medical Equipment
Compatible Inductor

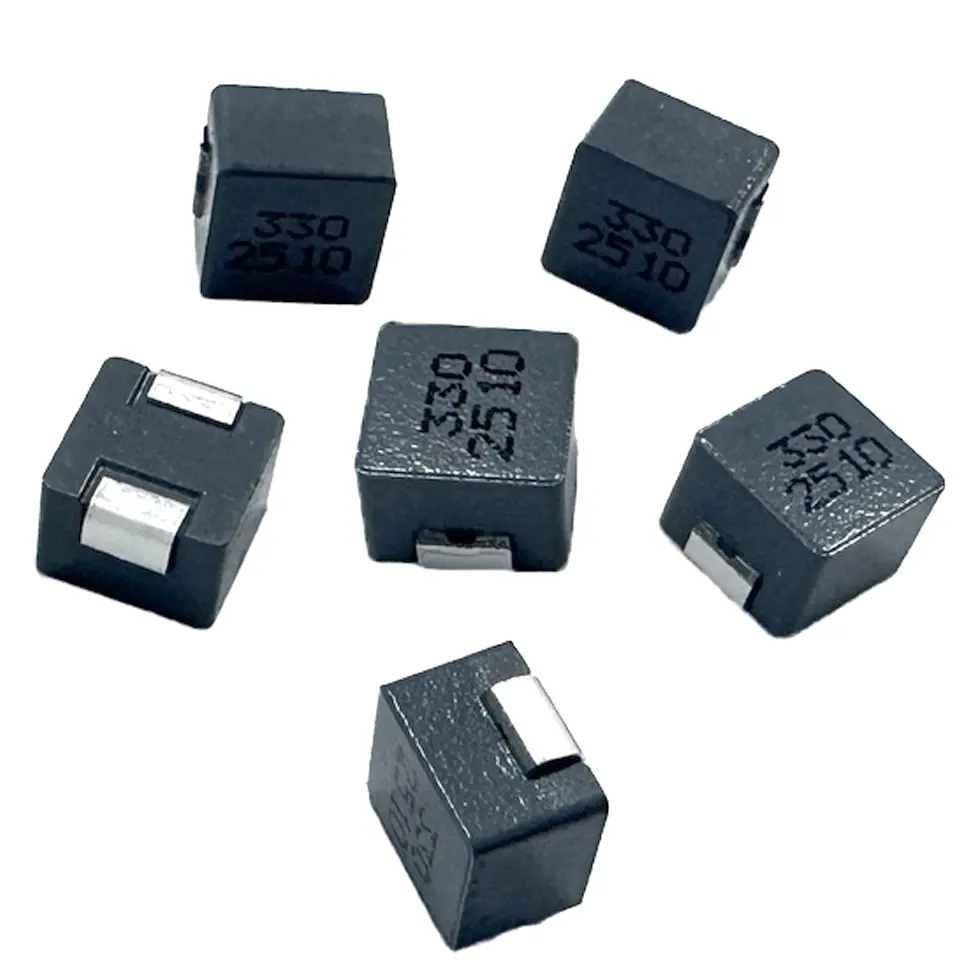

Multi-Size GSHM Series Molded Power Inductor For Medical Equipment
Inquiry
TDS DownloadProduct Introduction
Advantages of Gu Jing Integrated inductor
1. Superior High-Current & Low-Loss Performance, Stable Extreme Operation
Built with optimized high-density magnetic powder and integral compression molding, the GSHM series offers 30A peak current and 15A continuous current with ultra-low DCR. It minimizes power loss and heat generation, maintaining stable inductance under high load and frequent switching. Ideal for DC-DC converters, inverters and network devices, it ensures long-term stable operation of high-power terminal equipment.
2. Miniaturized Compact Structure & Strong Anti-Interference, EMC Compliance
Adopting a fully enclosed magnetic shielding structure, the GSHM series achieves compact miniaturization to save PCB space and support high-integration product design. The closed magnetic circuit greatly reduces magnetic leakage, providing superior EMI/EMC anti-interference performance. Enhanced integral molding structure improves mechanical stability during SMT mounting, helping products pass international EMC certifications efficiently and shorten project development cycles.
3. Full Compatibility & Reliable Global Supply, Customized Support
Fully pin-to-pin and performance compatible with mainstream brands (Coilcraft, Würth, etc.), GSHM inductors support direct seamless replacement without PCB modification, effectively cutting BOM costs and solving supply chain constraints. Compliant with global environmental standards and suitable for automated reel SMT production. We support standard supply and custom inductance specifications, with fast sample delivery and consistent batch quality, delivering reliable long-term supply for global mass production orders.

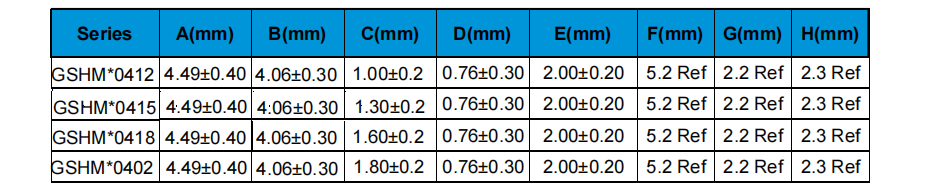

Product parameters

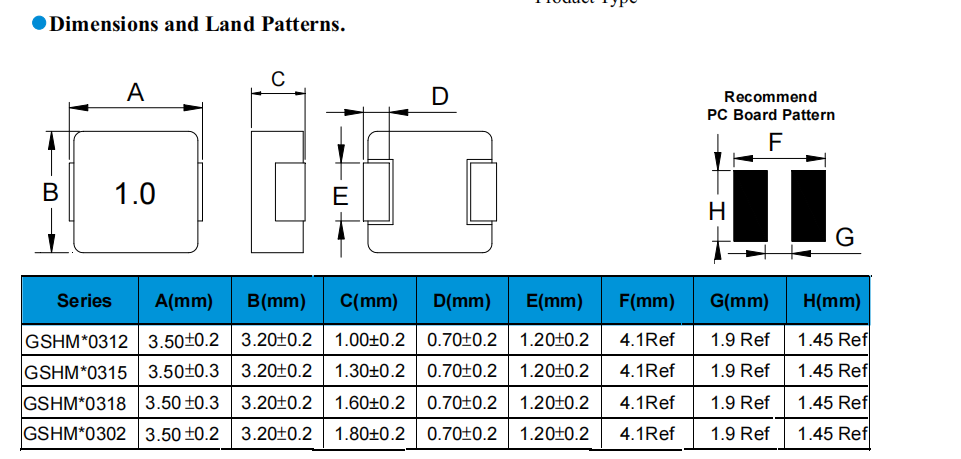

GSHM series unshielded inductor size diagram
