In the field of electronic product design, the selection of inductors often determines the overall performance and reliability of the product. Recently, Gujing collaborated with a client specializing in vacuum cleaners and water pumps to successfully resolve the issue of excessive temperature rise in the integrated inductor of their new portable coffee maker. This article provides a comprehensive overview of the solution process for this case, demonstrating how Gujing’s technical team leveraged their expertise to help the client optimize their product design. Translated with DeepL.com (free version)

The Client’s Challenge: Temperature Rise Issues with Inductors in a New Portable Coffee Maker

The client is a company with a long-standing focus on vacuum cleaners and water pumps, planning to expand into the small appliance market by launching a new portable coffee maker. As an export product, it had extremely high requirements for quality and safety. During the initial design phase, the client selected a 0605-packaged, molded inductor with an inductance of 4.7 uH and a current rating of over 5 A.

However, during actual testing, the inductor samples provided by the partner supplier exhibited severe overheating, with a temperature rise as high as 80°C, leading to reduced product stability and a shorter lifespan. The client explicitly required the temperature rise to be reduced to below 60°C and preliminarily determined that the issue stemmed from the inductor’s excessive resistance, hoping to find an alternative solution with lower resistance.

Accurate Diagnosis: Gujing’s Technical Team Conducts an In-Depth Analysis of the Root Cause

Upon receiving the client’s inquiry, the Gujing technical team responded promptly and immediately engaged in in-depth communication with the client’s hardware engineers. By thoroughly understanding the specifics of the project—including circuit design, operating environment, load characteristics, and other parameters—our technical engineers quickly pinpointed the root cause of the issue.

Indeed, the client’s assessment was correct: the excessive temperature rise of the inductor was closely related to its resistance. However, the critical challenge was to find an inductor solution that simultaneously met the requirements for low resistance, high current handling capacity, and appropriate inductance. This was not merely a simple component replacement issue, but a technical challenge requiring comprehensive consideration from the perspectives of materials science and product design.

Material Innovation: First-Round Samples Achieve Significant Reduction in Temperature Rise

Based on a deep understanding of the problem, the Guijing technical team decided to tackle this challenge by focusing on materials. Leveraging our extensive knowledge of materials science, we selected a more suitable magnetic powder formulation and redesigned the internal structure of the molded inductor.

While maintaining the same 0605 package, we provided the customer with improved samples. The customer’s test results showed that the temperature rise of the inductor was successfully reduced from the original 80°C to below 60°C, fully meeting the customer’s requirements. This significant improvement earned high praise from the customer’s hardware engineers and laid a foundation of trust for future collaboration.

Collaborative Optimization: Recommending Optimal Solutions Based on Chip Characteristics

With the hardware engineers satisfied, the client’s software engineers raised further requirements: they hoped the inductor could better match the characteristics of the chips they were using. The Gujiang technical team demonstrated rapid responsiveness and immediately recommended a monolithic 0805-package inductor with the same inductance, based on parameters such as the chip’s operating frequency and switching characteristics.

The 0805 package offers a larger volume compared to the 0605, which means lower DC resistance and better heat dissipation can be achieved through optimized design. Our technical team clearly explained to the client the differences in characteristics between the two packages and how package selection could further enhance the product’s overall performance.

A Perfect Conclusion: Meeting Dual Requirements to Achieve the Optimal Solution

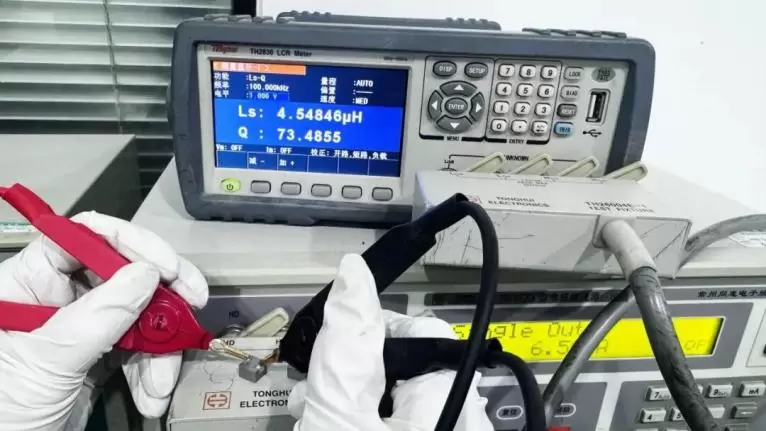

The client conducted comprehensive testing and comparisons of the two different 0805-packaged, one-piece molded inductors recommended by Gujing.

The final results showed that the 4.7uH monolithic 0805-package inductor not only perfectly resolved the temperature rise issue but also further enhanced the product’s overall performance due to its high compatibility with the chip.

The client ultimately selected the 0805-package inductor for mass production, marking a successful breakthrough in the portable coffee maker project’s technical challenges and clearing the way for subsequent large-scale production and market promotion.

Technical Expertise: Gujiing’s 23 Years of Contract Manufacturing Experience Empowering Customer Innovation

The successful resolution of this case is underpinned by the technical expertise accumulated through Gujiing’s 23 years of brand contract manufacturing experience. Gujiing operates an independent research laboratory dedicated to the development and testing of various magnetic powder formulations. With a comprehensive database of magnetic materials, we are able to provide the most suitable inductor solutions tailored to our customers’ specific application scenarios and product requirements.

We fully understand that there is no “one-size-fits-all” inductor solution in electronic product design. Different application scenarios, circuit designs, and performance requirements all call for custom-designed inductor components. It is precisely this attention to detail and deep commitment to technology that enables Gujing to provide customers with truly valuable technical support. Moving forward, Gujing will continue to uphold the philosophy of “technology-driven, customer-first,” providing high-quality inductor solutions to clients across a wider range of industries and helping propel China’s smart manufacturing to new heights.
