Characteristics of I-shaped inductor DLCR
1. Small-sized vertical inductors occupy little installation space; inductance range: between 1.0uH and 100000uH.
2. Small distributed capacitance and high self-resonant frequency; rated current: based on temperature rise not exceeding 20°C.
3. Special lead structure, less prone to open circuit phenomenon. Operating temperature range: between -20oC and 80oC.
4. Protect with PVC or UL heat-shrink tubing. Terminal strength: greater than 2.5 kilograms.
5. Lead-free and environmentally friendly.
Application areas of I-shaped inductor DLCH
DC/DC conversion, etc.; audio signal products; personal computers, etc.;electrical equipment

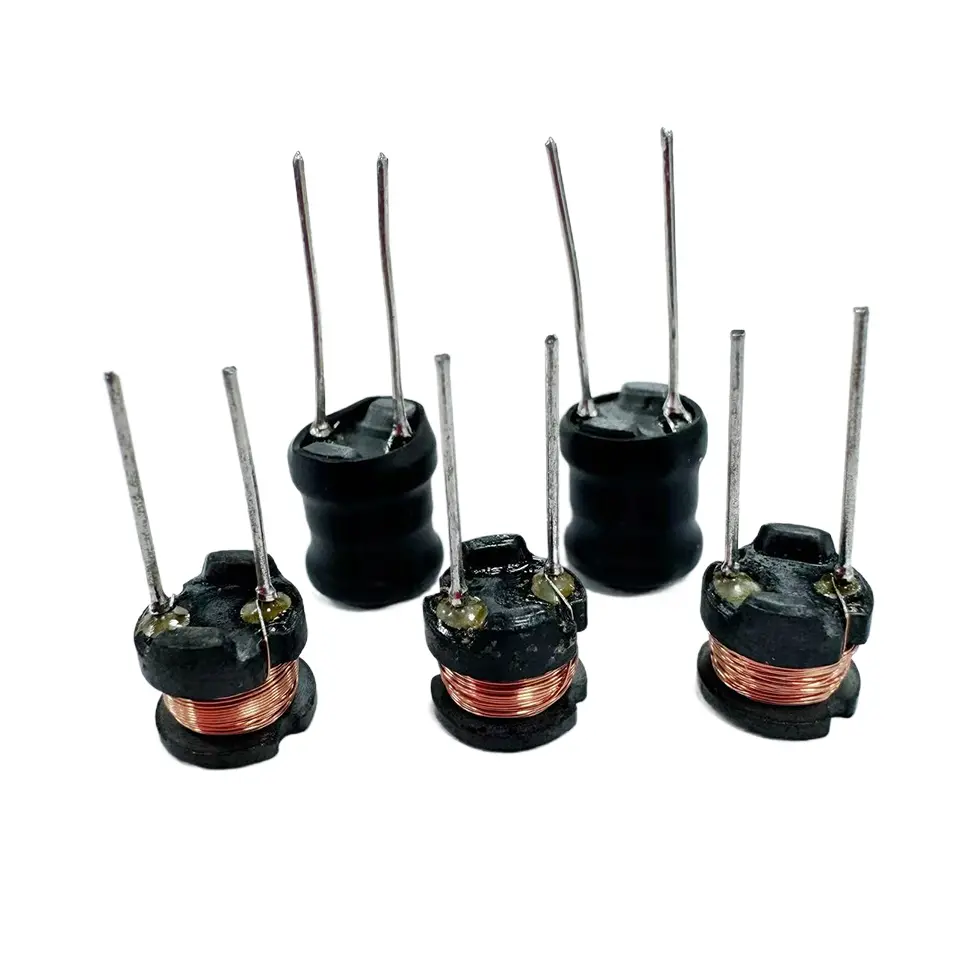

DLCH Series
List of package dimensions for inductor DLCR
| TYPE | A | B max | C | D |
|---|---|---|---|---|
| DLCH654 | 6.5 | 5.0 | 2.5 | 0.5 |
| DLCH855 | 8.3 | 5.5 | 2.5 | 0.7 |
| DLCH875 | 8.3 | 7.5 | 2.5 | 0.7 |
| DLCP112 | 8.3 | 9.8 | 2.5 | 0.7 |

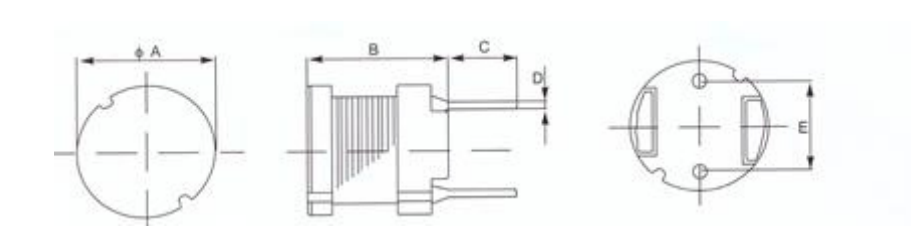

Three-legged I-shaped inductor DLCH package size

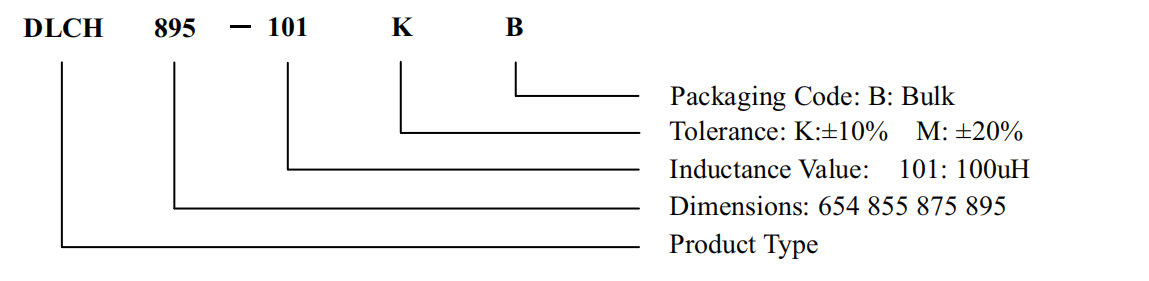

Common mode inductance DLCR coding system
