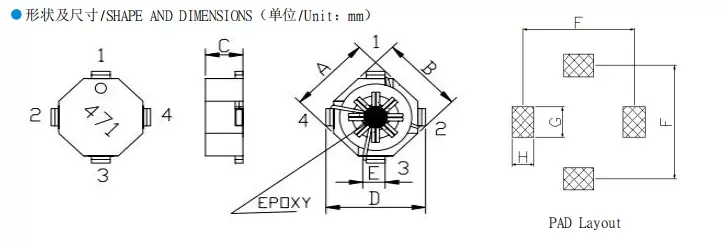

1. Miniaturized design: The bottom adopts a metal pad structure, perfectly fitting the SMT chip-mounting process, and can efficiently meet the integration design requirements of high-density PCB boards.

2. Leadless SMD architecture: As a leadless surface-mount device, it is directly connected to the circuit board through the bottom solder pad, effectively reducing lead parasitic inductance and capacitance, and significantly enhancing the high-frequency performance of the product.

3. Optimized structure of magnetic ring coil: The core is made of high-permeability ferrite magnetic ring, and the external part is precisely wound with copper wire coil, which can efficiently complete the bidirectional conversion between electric energy and magnetic energy, ensuring excellent electromagnetic performance.

SMD Magnetic Ring Inductors GTCSM1207C SERIES Product Applications

1. New Energy Equipment Sector: Suitable for DC-DC conversion circuits in charging stations and portable energy storage devices, these inductors leverage their high magnetic permeability to achieve efficient energy conversion. Their high temperature resistance enables them to handle the complex temperature environments encountered in outdoor equipment operations.

2. Smart home field: Applied to power filtering and signal stabilization for smart door locks, smart cameras, and whole-house intelligent central control modules, its small size advantage can accommodate the miniaturization design of smart home products, and its low loss characteristics can enhance the device's battery life.

3. Medical electronics: Power management modules for portable medical detectors (such as blood glucose analyzers and electrocardiogram monitors) and small physical therapy devices, featuring high reliability and anti-interference capabilities, can ensure the accuracy of signal acquisition in medical equipment and meet the stringent stability requirements of medical electronics.
